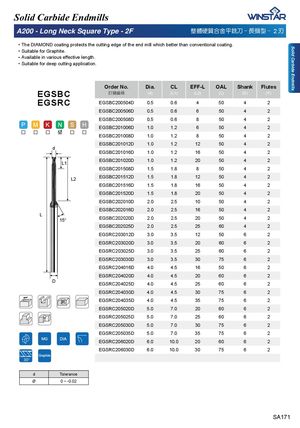

Каталог Winstar монолитный инструмент 2020 - страница 181

Solid Carbide Endmills Solid Carbide Endmills A200 - Long Neck Square Type - 2F 㜃汣䧻幹▗捠。搠⎏ . 朆槇⤚ .!2 ⎒ ᅚThe DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚSuitable for Graphite. ᅚ $YDLODEOHLQYDULRXVHႇHFWLYHOHQJWK ᅚSuitable for deep cutting application. Order No. Dia. CL EFF-L OAL Shank Flutes EGSBC 宑庋佷䩋 (d) (L1) (L2) (L) (D) (F) EGSRC EGSBC200504D 0.5 0.6 4 50 4 2 EGSBC200506D 0.5 0.6 6 50 4 2 EGSBC200508D 0.5 0.6 8 50 4 2 EGSBC201006D 1.0 1.2 6 50 4 2 EGSBC201008D 1.0 1.2 8 50 4 2 EGSBC201012D 1.0 1.2 12 50 4 2 d EGSBC201016D 1.0 1.2 16 50 4 2 L1 EGSBC201020D 1.0 1.2 20 50 4 2 EGSBC201508D 1.5 1.8 8 50 4 2 L2 EGSBC201512D 1.5 1.8 12 50 4 2 EGSBC201516D 1.5 1.8 16 50 4 2 EGSBC201520D 1.5 1.8 20 50 4 2 EGSBC202010D 2.0 2.5 10 50 4 2 EGSBC202016D 2.0 2.5 16 50 4 2 L 15° EGSBC202020D 2.0 2.5 20 50 4 2 EGSBC202025D 2.0 2.5 25 60 4 2 EGSRC203012D 3.0 3.5 12 50 6 2 EGSRC203020D 3.0 3.5 20 60 6 2 EGSRC203025D 3.0 3.5 25 60 6 2 EGSRC203030D 3.0 3.5 30 75 6 2 EGSRC204016D 4.0 4.5 16 50 6 2 EGSRC204020D 4.0 4.5 20 60 6 2 D EGSRC204025D 4.0 4.5 25 60 6 2 EGSRC204030D 4.0 4.5 30 75 6 2 EGSRC204035D 4.0 4.5 35 75 6 2 EGSRC205020D 5.0 7.0 20 60 6 2 EGSRC205025D 5.0 7.0 25 60 6 2 EGSRC205030D 5.0 7.0 30 75 6 2 EGSRC205035D 5.0 7.0 35 75 6 2 EGSRC206020D 6.0 10.0 20 60 6 2 EGSRC206030D 6.0 10.0 30 75 6 2 30° d Tolerance Ø 0 ~ -0.02 SA171
