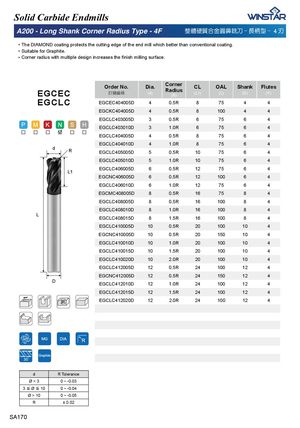

Solid Carbide Endmills A200 - Long Shank Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆㥓⤚ .!4 ⎒ ᅚThe DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚSuitable for Graphite. ᅚ &RUQHUUDGLXVZLWKPXOWLSOHGHVLJQLQFUHDVHVWKH¿QLVKPLOOLQJVXUIDFH EGCEC Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1) OAL Shank Flutes(L)(D)(F) EGCLC EGCEC404005D 4 0.5R 8 75 4 4 EGCKC404005D 4 0.5R 8 100 4 4 EGCLC403005D 3 0.5R 6 75 6 4 EGCLC403010D 3 1.0R 6 75 6 4 EGCLC404005D 4 0.5R 8 75 6 4 EGCLC404010D 4 1.0R 8 75 6 4 d R EGCLC405005D 5 0.5R 10 75 6 4 EGCLC405010D 5 1.0R 10 75 6 4 L1 EGCLC406005D 6 0.5R 12 75 6 4 EGCNC406005D 6 0.5R 12 100 6 4 EGCLC406010D 6 1.0R 12 75 6 4 EGCMC408005D 8 0.5R 16 75 8 4 EGCLC408005D 8 0.5R 16 100 8 4 EGCLC408010D 8 1.0R 16 100 8 4 L EGCLC408015D 8 1.5R 16 100 8 4 EGCLC410005D 10 0.5R 20 100 10 4 EGCNC410005D 10 0.5R 20 150 10 4 EGCLC410010D 10 1.0R 20 100 10 4 EGCLC410015D 10 1.5R 20 100 10 4 EGCLC410020D 10 2.0R 20 100 10 4 EGCLC412005D 12 0.5R 24 100 12 4 EGCNC412005D 12 0.5R 24 150 12 4 D EGCLC412010D 12 1.0R 24 100 12 4 EGCLC412015D 12 1.5R 24 100 12 4 EGCLC412020D 12 2.0R 24 100 12 4 d R Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 R ± 0.02 SA170
