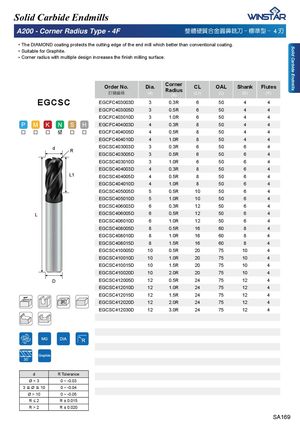

Solid Carbide Endmills Solid Carbide Endmills A200 - Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ . 㮨䀥⤚ .!4 ⎒ ᅚThe DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚSuitable for Graphite. ᅚ &RUQHUUDGLXVZLWKPXOWLSOHGHVLJQLQFUHDVHVWKH¿QLVKPLOOLQJVXUIDFH Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1) OAL Shank Flutes(L)(D)(F) EGCSC EGCFC403003D 3 0.3R 6 50 4 4 EGCFC403005D 3 0.5R 6 50 4 4 EGCFC403010D 3 1.0R 6 50 4 4 EGCFC404003D 4 0.3R 8 50 4 4 EGCFC404005D 4 0.5R 8 50 4 4 EGCFC404010D 4 1.0R 8 50 4 4 d R EGCSC403003D 3 0.3R 6 50 6 4 EGCSC403005D 3 0.5R 6 50 6 4 EGCSC403010D 3 1.0R 6 50 6 4 EGCSC404003D 4 0.3R 8 50 6 4 L1 EGCSC404005D 4 0.5R 8 50 6 4 EGCSC404010D 4 1.0R 8 50 6 4 EGCSC405005D 5 0.5R 10 50 6 4 EGCSC405010D 5 1.0R 10 50 6 4 EGCSC406003D 6 0.3R 12 50 6 4 L EGCSC406005D 6 0.5R 12 50 6 4 EGCSC406010D 6 1.0R 12 50 6 4 EGCSC408005D 8 0.5R 16 60 8 4 EGCSC408010D 8 1.0R 16 60 8 4 EGCSC408015D 8 1.5R 16 60 8 4 EGCSC410005D 10 0.5R 20 75 10 4 EGCSC410010D 10 1.0R 20 75 10 4 EGCSC410015D 10 1.5R 20 75 10 4 EGCSC410020D 10 2.0R 20 75 10 4 D EGCSC412005D 12 0.5R 24 75 12 4 EGCSC412010D 12 1.0R 24 75 12 4 EGCSC412015D 12 1.5R 24 75 12 4 EGCSC412020D 12 2.0R 24 75 12 4 EGCSC412030D 12 3.0R 24 75 12 4 d R Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 5” R ± 0.015 R>2 R ± 0.020 SA169
