Каталог Winstar монолитный инструмент 2020 - страница 178

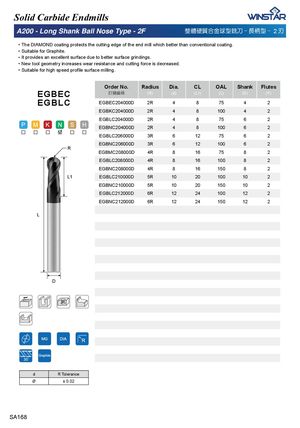

Solid Carbide Endmills A200 - Long Shank Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 朆㥓⤚ .!2 ⎒ ᅚ The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚ Suitable for Graphite. ᅚ It provides an excellent surface due to better surface grindings. ᅚ New tool geometry increases wear resistance and cutting force is decreased. ᅚ 6XLWDEOHIRUKLJKVSHHGSUR¿OHVXUIDFHPLOOLQJ Order No. Radius Dia. CL OAL Shank Flutes EGBEC 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) EGBLC EGBEC204000D 2R 4 8 75 4 2 EGBKC204000D 2R 4 8 100 4 2 EGBLC204000D 2R 4 8 75 6 2 EGBNC204000D 2R 4 8 100 6 2 EGBLC206000D 3R 6 12 75 6 2 EGBNC206000D 3R 6 12 100 6 2 R EGBMC208000D 4R 8 16 75 8 2 EGBLC208000D 4R 8 16 100 8 2 EGBNC208000D 4R 8 16 150 8 2 L1 EGBLC210000D 5R 10 20 100 10 2 EGBNC210000D 5R 10 20 150 10 2 EGBLC212000D 6R 12 24 100 12 2 EGBNC212000D 6R 12 24 150 12 2 L D d R Tolerance Ø ± 0.02 SA168
