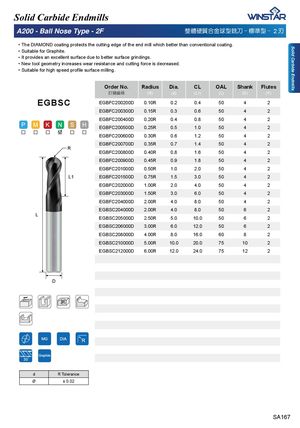

Solid Carbide Endmills A200 - Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 㮨䀥⤚ .!2 ⎒ ᅚ The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. Solid Carbide Endmills ᅚ Suitable for Graphite. ᅚ It provides an excellent surface due to better surface grindings. ᅚ New tool geometry increases wear resistance and cutting force is decreased. ᅚ 6XLWDEOHIRUKLJKVSHHGSUR¿OHVXUIDFHPLOOLQJ Order No. Radius Dia. CL OAL Shank Flutes 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) EGBSC EGBFC200200D 0.10R 0.2 0.4 50 4 2 EGBFC200300D 0.15R 0.3 0.6 50 4 2 EGBFC200400D 0.20R 0.4 0.8 50 4 2 EGBFC200500D 0.25R 0.5 1.0 50 4 2 EGBFC200600D 0.30R 0.6 1.2 50 4 2 EGBFC200700D 0.35R 0.7 1.4 50 4 2 R EGBFC200800D 0.40R 0.8 1.6 50 4 2 EGBFC200900D 0.45R 0.9 1.8 50 4 2 EGBFC201000D 0.50R 1.0 2.0 50 4 2 L1 EGBFC201500D 0.75R 1.5 3.0 50 4 2 EGBFC202000D 1.00R 2.0 4.0 50 4 2 EGBFC203000D 1.50R 3.0 6.0 50 4 2 EGBFC204000D 2.00R 4.0 8.0 50 4 2 EGBSC204000D 2.00R 4.0 8.0 50 6 2 L EGBSC205000D 2.50R 5.0 10.0 50 6 2 EGBSC206000D 3.00R 6.0 12.0 50 6 2 EGBSC208000D 4.00R 8.0 16.0 60 8 2 EGBSC210000D 5.00R 10.0 20.0 75 10 2 EGBSC212000D 6.00R 12.0 24.0 75 12 2 D d R Tolerance Ø ± 0.02 SA167
