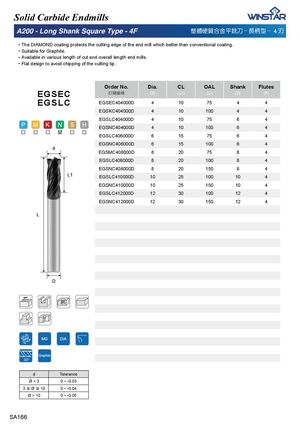

Solid Carbide Endmills A200 - Long Shank Square Type - 4F 㜃汣䧻幹▗捠。搠⎏ . 朆㥓⤚ .!4 ⎒ ᅚ The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚ Suitable for Graphite. ᅚ Available in various length of cut and overall length end mills. ᅚ Flat design to avoid chipping of the cutting tip. Order No. Dia. CL OAL Shank Flutes EGSEC 宑庋佷䩋 (d) (L1) (L) (D) (F) EGSLC EGSEC404000D 4 10 75 4 4 EGSKC404000D 4 10 100 4 4 EGSLC404000D 4 10 75 6 4 EGSNC404000D 4 10 100 6 4 EGSLC406000D 6 15 75 6 4 EGSNC406000D 6 15 100 6 4 d EGSMC408000D 8 20 75 8 4 EGSLC408000D 8 20 100 8 4 EGSNC408000D 8 20 150 8 4 L1 EGSLC410000D 10 25 100 10 4 EGSNC410000D 10 25 150 10 4 EGSLC412000D 12 30 100 12 4 EGSNC412000D 12 30 150 12 4 L D 30° d Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 SA166
