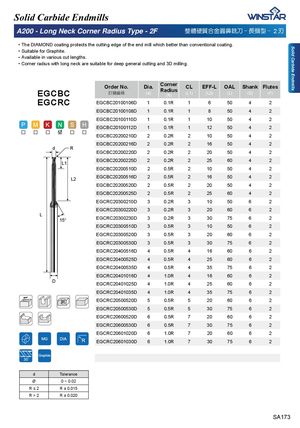

Solid Carbide Endmills Solid Carbide Endmills A200 - Long Neck Corner Radius Type - 2F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!2 ⎒ ᅚThe DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚSuitable for Graphite. ᅚAvailable in various cut lengths. ᅚCorner radius with long neck are suitable for deep general cutting and 3D milling. EGCBC Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1)EFF-L OAL Shank Flutes(L2)(L)(D)(F) EGCRC EGCBC20100106D 1 0.1R 1 6 50 4 2 EGCBC20100108D 1 0.1R 1 8 50 4 2 EGCBC20100110D 1 0.1R 1 10 50 4 2 EGCBC20100112D 1 0.1R 1 12 50 4 2 EGCBC20200210D 2 0.2R 2 10 50 4 2 EGCBC20200216D 2 0.2R 2 16 50 4 2 d R EGCBC20200220D 2 0.2R 2 20 50 4 2 L1 EGCBC20200225D 2 0.2R 2 25 60 4 2 EGCBC20200510D 2 0.5R 2 10 50 4 2 L2 EGCBC20200516D 2 0.5R 2 16 50 4 2 EGCBC20200520D 2 0.5R 2 20 50 4 2 EGCBC20200525D 2 0.5R 2 25 60 4 2 EGCRC20300210D 3 0.2R 3 10 50 6 2 EGCRC20300220D 3 0.2R 3 20 60 6 2 L 15° EGCRC20300230D 3 0.2R 3 30 75 6 2 EGCRC20300510D 3 0.5R 3 10 50 6 2 EGCRC20300520D 3 0.5R 3 20 60 6 2 EGCRC20300530D 3 0.5R 3 30 75 6 2 EGCRC20400516D 4 0.5R 4 16 60 6 2 EGCRC20400525D 4 0.5R 4 25 60 6 2 EGCRC20400535D 4 0.5R 4 35 75 6 2 EGCRC20401016D 4 1.0R 4 16 60 6 2 D EGCRC20401025D 4 1.0R 4 25 60 6 2 EGCRC20401035D 4 1.0R 4 35 75 6 2 EGCRC20500520D 5 0.5R 5 20 60 6 2 EGCRC20500530D 5 0.5R 5 30 75 6 2 EGCRC20600520D 6 0.5R 7 20 60 6 2 EGCRC20600530D 6 0.5R 7 30 75 6 2 EGCRC20601020D 6 1.0R 7 20 60 6 2 EGCRC20601030D 6 1.0R 7 30 75 6 2 d Tolerance Ø 0 ~ 0.02 5” R ± 0.015 R>2 R ± 0.020 SA173
