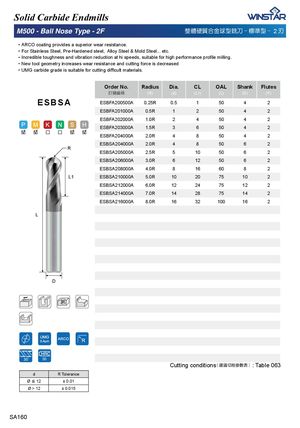

Solid Carbide Endmills M500 - Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 㮨䀥⤚ .!2 ⎒ ᅚARCO coating provides a superior wear resistance. ᅚFor Stainless Steel, Pre-Hardened steel, Alloy Steel & Mold Steel... etc. ᅚ ,QFUHGLEOHWRXJKQHVVDQGYLEUDWLRQUHGXFWLRQDWKLVSHHGVVXLWDEOHIRUKLJKSHUIRUPDQFHSUR¿OHPLOOLQJ ᅚNew tool geometry increases wear resistance and cutting force is decreased ᅚ 80*FDUELGHJUDGHLVVXLWDEOHIRUFXWWLQJGLႈFXOWPDWHULDOV Order No. Radius Dia. CL OAL Shank Flutes 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) ESBSA ESBFA200500A 0.25R 0.5 1 50 4 2 ESBFA201000A 0.5R 1 2 50 4 2 ESBFA202000A 1.0R 2 4 50 4 2 ESBFA203000A 1.5R 3 6 50 4 2 ESBFA204000A 2.0R 4 8 50 4 2 ESBSA204000A 2.0R 4 8 50 6 2 R ESBSA205000A 2.5R 5 10 50 6 2 ESBSA206000A 3.0R 6 12 50 6 2 ESBSA208000A 4.0R 8 16 60 8 2 L1 ESBSA210000A 5.0R 10 20 75 10 2 ESBSA212000A 6.0R 12 24 75 12 2 ESBSA214000A 7.0R 14 28 75 14 2 ESBSA216000A 8.0R 16 32 100 16 2 L D 50 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 063 d R Tolerance Ø Ŝ 12 ± 0.01 Ø > 12 ± 0.015 SA160
