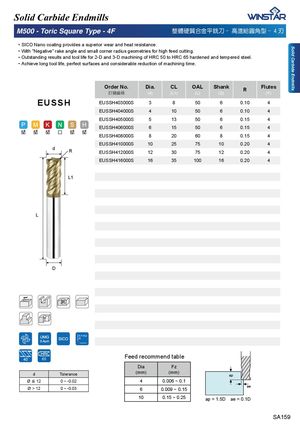

Solid Carbide Endmills Solid Carbide Endmills M500 - Toric Square Type - 4F 㜃汣䧻幹▗捠。搠⎏ .!汧懁仵⢢孡⤚ .!5 ⎒ ᅚSICO Nano coating provides a superior wear and heat resistance. ᅚWith "Negative" rake angle and small corner radius geometries for high feed cutting. ᅚOutstanding results and tool life for 2-D and 3-D machining of HRC 50 to HRC 65 hardened and tempered steel. ᅚAchieve long tool life, perfect surfaces and considerable reduction of machining time. Order No. Dia. CL OAL Shank R Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) EUSSH EUSSH403000S 3 8 50 6 0.10 4 EUSSH404000S 4 10 50 6 0.10 4 EUSSH405000S 5 13 50 6 0.15 4 EUSSH406000S 6 15 50 6 0.15 4 EUSSH408000S 8 20 60 8 0.15 4 EUSSH410000S 10 25 75 10 0.20 4 d R EUSSH412000S 12 30 75 12 0.20 4 EUSSH416000S 16 35 100 16 0.20 4 L1 L D 65 Feed recommend table Dia Fz d Tolerance (mm) (mm) Ø Ŝ 12 0 ~ -0.02 4 0.006 ~ 0.1 Ø> 12 0 ~ -0.03 6 0.009 ~ 0.15 10 0.15 ~ 0.25 ap = 1.5D ae = 0.1D SA159
