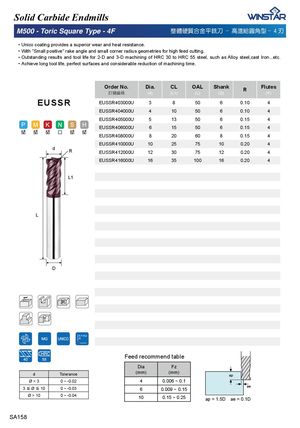

Solid Carbide Endmills M500 - Toric Square Type - 4F 㜃汣䧻幹▗捠。搠⎏!.!汧懁仵⢢孡⤚ .!5 ⎒ ᅚ Unico coating provides a superior wear and heat resistance. ᅚ With "Small positive" rake angle and small corner radius geometries for high feed cutting. ᅚ Outstanding results and tool life for 2-D and 3-D machining of HRC 30 to HRC 55 steel, such as Alloy steel,cast Iron...etc. ᅚ Achieve long tool life, perfect surfaces and considerable reduction of machining time. Order No. Dia. CL OAL Shank Flutes R 宑庋佷䩋 (d) (L1) (L) (D) (F) EUSSR EUSSR403000U 3 8 50 6 0.10 4 EUSSR404000U 4 10 50 6 0.10 4 EUSSR405000U 5 13 50 6 0.15 4 EUSSR406000U 6 15 50 6 0.15 4 EUSSR408000U 8 20 60 8 0.15 4 EUSSR410000U 10 25 75 10 0.20 4 d R EUSSR412000U 12 30 75 12 0.20 4 EUSSR416000U 16 35 100 16 0.20 4 L1 L D Feed recommend table Dia Fz d Tolerance (mm) (mm) Ø<3 0 ~ -0.02 4 0.006 ~ 0.1 3 Ŝ Ø Ŝ 10 0 ~ -0.03 6 0.009 ~ 0.15 Ø > 10 0 ~ -0.04 10 0.15 ~ 0.25 ap = 1.5D ae = 0.1D SA158
