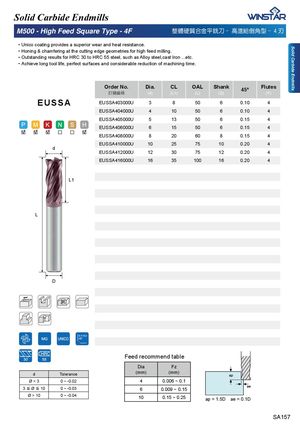

Solid Carbide Endmills M500 - High Feed Square Type - 4F 㜃汣䧻幹▗捠。搠⎏ .!汧懁仵↡孡⤚ .!5 ⎒ ᅚ Unico coating provides a superior wear and heat resistance. Solid Carbide Endmills ᅚ Honing & chamfering at the cutting edge geometries for high feed milling. ᅚ Outstanding results for HRC 30 to HRC 55 steel, such as Alloy steel,cast Iron ...etc. ᅚ Achieve long tool life, perfect surfaces and considerable reduction of machining time. Order No. Dia. CL OAL Shank Flutes ƒ 宑庋佷䩋 (d) (L1) (L) (D) (F) EUSSA EUSSA403000U 3 8 50 6 0.10 4 EUSSA404000U 4 10 50 6 0.10 4 EUSSA405000U 5 13 50 6 0.15 4 EUSSA406000U 6 15 50 6 0.15 4 EUSSA408000U 8 20 60 8 0.15 4 EUSSA410000U 10 25 75 10 0.20 4 d EUSSA412000U 12 30 75 12 0.20 4 EUSSA416000U 16 35 100 16 0.20 4 L1 L D Feed recommend table Dia Fz d Tolerance (mm) (mm) Ø<3 0 ~ -0.02 4 0.006 ~ 0.1 3 Ŝ Ø Ŝ 10 0 ~ -0.03 6 0.009 ~ 0.15 Ø > 10 0 ~ -0.04 10 0.15 ~ 0.25 ap = 1.5D ae = 0.1D SA157
