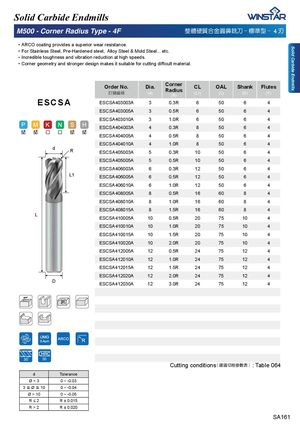

Solid Carbide Endmills Solid Carbide Endmills M500 - Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ . 㮨䀥⤚ .!4 ⎒ ᅚARCO coating provides a superior wear resistance. ᅚFor Stainless Steel, Pre-Hardened steel, Alloy Steel & Mold Steel... etc. ᅚIncredible toughness and vibration reduction at high speeds. ᅚ &RUQHUJHRPHWU\DQGVWURQJHUGHVLJQPDNHVLWVXLWDEOHIRUFXWWLQJGLႈFXOWPDWHULDO Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1) OAL Shank Flutes(L)(D)(F) ESCSA ESCSA403003A 3 0.3R 6 50 6 4 ESCSA403005A 3 0.5R 6 50 6 4 ESCSA403010A 3 1.0R 6 50 6 4 ESCSA404003A 4 0.3R 8 50 6 4 ESCSA404005A 4 0.5R 8 50 6 4 ESCSA404010A 4 1.0R 8 50 6 4 d R ESCSA405003A 5 0.3R 10 50 6 4 ESCSA405005A 5 0.5R 10 50 6 4 ESCSA406003A 6 0.3R 12 50 6 4 L1 ESCSA406005A 6 0.5R 12 50 6 4 ESCSA406010A 6 1.0R 12 50 6 4 ESCSA408005A 8 0.5R 16 60 8 4 ESCSA408010A 8 1.0R 16 60 8 4 ESCSA408015A 8 1.5R 16 60 8 4 L ESCSA410005A 10 0.5R 20 75 10 4 ESCSA410010A 10 1.0R 20 75 10 4 ESCSA410015A 10 1.5R 20 75 10 4 ESCSA410020A 10 2.0R 20 75 10 4 ESCSA412005A 12 0.5R 24 75 12 4 ESCSA412010A 12 1.0R 24 75 12 4 ESCSA412015A 12 1.5R 24 75 12 4 ESCSA412020A 12 2.0R 24 75 12 4 D ESCSA412030A 12 3.0R 24 75 12 4 50 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 064 d Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 5” R ± 0.015 R>2 R ± 0.020 SA161
