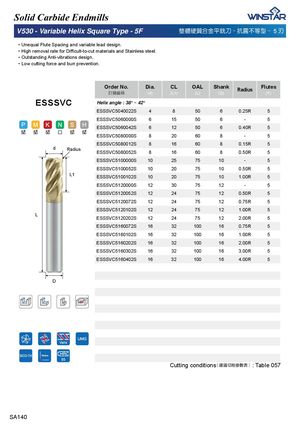

Solid Carbide Endmills V530 - Variable Helix Square Type - 5F 㜃汣䧻幹▗捠。搠⎏ . 㐦梖ᾜ䳘⤚ .!5 ⎒ ᅚUnequal Flute Spacing and variable lead design. ᅚ +LJKUHPRYDOUDWHIRU'LႈFXOWWRFXWPDWHULDOVDQG6WDLQOHVVVWHHO ᅚOutstanding Anti-vibrations design. ᅚLow cutting force and burr prevention. Order No. Dia. CL OAL Shank Radius Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ESSSVC Helix angle : 38° ~ 42° ESSSVC5040022S 4 8 50 6 0.25R 5 ESSSVC5060000S 6 15 50 6 - 5 ESSSVC5060042S 6 12 50 6 0.40R 5 ESSSVC5080000S 8 20 60 8 - 5 ESSSVC5080012S 8 16 60 8 0.15R 5 d Radius ESSSVC5080052S 8 16 60 8 0.50R 5 ESSSVC5100000S 10 25 75 10 - 5 ESSSVC5100052S 10 20 75 10 0.50R 5 L1 ESSSVC5100102S 10 20 75 10 1.00R 5 ESSSVC5120000S 12 30 75 12 - 5 ESSSVC5120052S 12 24 75 12 0.50R 5 ESSSVC5120072S 12 24 75 12 0.75R 5 ESSSVC5120102S 12 24 75 12 1.00R 5 L ESSSVC5120202S 12 24 75 12 2.00R 5 ESSSVC5160072S 16 32 100 16 0.75R 5 ESSSVC5160102S 16 32 100 16 1.00R 5 ESSSVC5160202S 16 32 100 16 2.00R 5 ESSSVC5160302S 16 32 100 16 3.00R 5 ESSSVC5160402S 16 32 100 16 4.00R 5 D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 057 SA140
