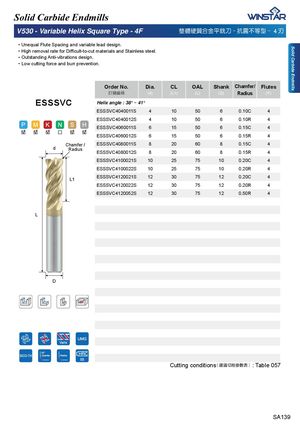

Solid Carbide Endmills V530 - Variable Helix Square Type - 4F 㜃汣䧻幹▗捠。搠⎏ . 㐦梖ᾜ䳘⤚ .!4 ⎒ ᅚ Unequal Flute Spacing and variable lead design. Solid Carbide Endmills ᅚ +LJKUHPRYDOUDWHIRU'LႈFXOWWRFXWPDWHULDOVDQG6WDLQOHVVVWHHO ᅚ Outstanding Anti-vibrations design. ᅚ Low cutting force and burr prevention. Order No. Dia. CL OAL Shank Chamfer/ Flutes 宑庋佷䩋 (d) (L1) (L) (D) Radius (F) ESSSVC Helix angle : 38° ~ 41° ESSSVC4040011S 4 10 50 6 0.10C 4 ESSSVC4040012S 4 10 50 6 0.10R 4 ESSSVC4060011S 6 15 50 6 0.15C 4 ESSSVC4060012S 6 15 50 6 0.15R 4 Chamfer / ESSSVC4080011S 8 20 60 8 0.15C 4 d Radius ESSSVC4080012S 8 20 60 8 0.15R 4 ESSSVC4100021S 10 25 75 10 0.20C 4 ESSSVC4100022S 10 25 75 10 0.20R 4 ESSSVC4120021S 12 30 75 12 0.20C 4 L1 ESSSVC4120022S 12 30 75 12 0.20R 4 ESSSVC4120052S 12 30 75 12 0.50R 4 L D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 057 SA139
