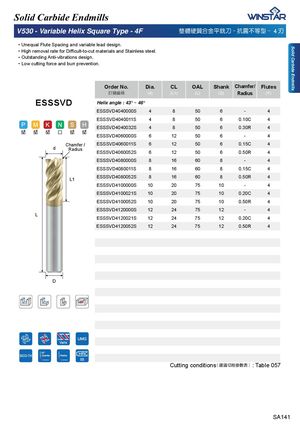

Solid Carbide Endmills V530 - Variable Helix Square Type - 4F 㜃汣䧻幹▗捠。搠⎏ . 㐦梖ᾜ䳘⤚ .!4 ⎒ ᅚ Unequal Flute Spacing and variable lead design. Solid Carbide Endmills ᅚ +LJKUHPRYDOUDWHIRU'LႈFXOWWRFXWPDWHULDOVDQG6WDLQOHVVVWHHO ᅚ Outstanding Anti-vibrations design. ᅚ Low cutting force and burr prevention. Order No. Dia. CL OAL Shank Chamfer/ Flutes 宑庋佷䩋 (d) (L1) (L) (D) Radius (F) ESSSVD Helix angle : 43° ~ 46° ESSSVD4040000S 4 8 50 6 - 4 ESSSVD4040011S 4 8 50 6 0.10C 4 ESSSVD4040032S 4 8 50 6 0.30R 4 ESSSVD4060000S 6 12 50 6 - 4 Chamfer / ESSSVD4060011S 6 12 50 6 0.15C 4 d Radius ESSSVD4060052S 6 12 50 6 0.50R 4 ESSSVD4080000S 8 16 60 8 - 4 ESSSVD4080011S 8 16 60 8 0.15C 4 ESSSVD4080052S 8 16 60 8 0.50R 4 L1 ESSSVD4100000S 10 20 75 10 - 4 ESSSVD4100021S 10 20 75 10 0.20C 4 ESSSVD4100052S 10 20 75 10 0.50R 4 ESSSVD4120000S 12 24 75 12 - 4 L ESSSVD4120021S 12 24 75 12 0.20C 4 ESSSVD4120052S 12 24 75 12 0.50R 4 D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 057 SA141
