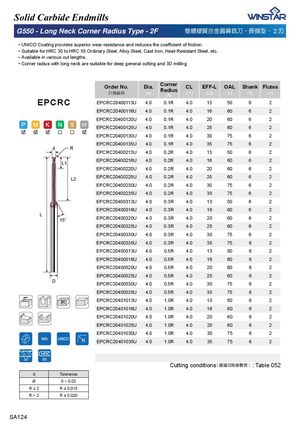

Solid Carbide Endmills G550 - Long Neck Corner Radius Type - 2F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚ Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚ Available in various cut lengths. ᅚ Corner radius with long neck are suitable for deep general cutting and 3D milling. Order No. Dia. Corner CL EFF-L OAL Shank Flutes 宑庋佷䩋 (d) Radius (L1) (L2) (L) (D) (F) (R) EPCRC EPCRC20400113U 4.0 0.1R 4.0 13 50 6 2 EPCRC20400116U 4.0 0.1R 4.0 16 60 6 2 EPCRC20400120U 4.0 0.1R 4.0 20 60 6 2 EPCRC20400125U 4.0 0.1R 4.0 25 60 6 2 EPCRC20400130U 4.0 0.1R 4.0 30 75 6 2 EPCRC20400135U 4.0 0.1R 4.0 35 75 6 2 d R EPCRC20400213U 4.0 0.2R 4.0 13 50 6 2 EPCRC20400216U 4.0 0.2R 4.0 16 60 6 2 L1 EPCRC20400220U 4.0 0.2R 4.0 20 60 6 2 L2 EPCRC20400225U 4.0 0.2R 4.0 25 60 6 2 EPCRC20400230U 4.0 0.2R 4.0 30 75 6 2 EPCRC20400235U 4.0 0.2R 4.0 35 75 6 2 EPCRC20400313U 4.0 0.3R 4.0 13 50 6 2 EPCRC20400316U 4.0 0.3R 4.0 16 60 6 2 L 15° EPCRC20400320U 4.0 0.3R 4.0 20 60 6 2 EPCRC20400325U 4.0 0.3R 4.0 25 60 6 2 EPCRC20400330U 4.0 0.3R 4.0 30 75 6 2 EPCRC20400335U 4.0 0.3R 4.0 35 75 6 2 EPCRC20400513U 4.0 0.5R 4.0 13 50 6 2 EPCRC20400516U 4.0 0.5R 4.0 16 60 6 2 EPCRC20400520U 4.0 0.5R 4.0 20 60 6 2 EPCRC20400525U 4.0 0.5R 4.0 25 60 6 2 D EPCRC20400530U 4.0 0.5R 4.0 30 75 6 2 EPCRC20400535U 4.0 0.5R 4.0 35 75 6 2 EPCRC20401013U 4.0 1.0R 4.0 13 50 6 2 EPCRC20401016U 4.0 1.0R 4.0 16 60 6 2 EPCRC20401020U 4.0 1.0R 4.0 20 60 6 2 EPCRC20401025U 4.0 1.0R 4.0 25 60 6 2 EPCRC20401030U 4.0 1.0R 4.0 30 75 6 2 EPCRC20401035U 4.0 1.0R 4.0 35 75 6 2 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 052 d Tolerance Ø 0 ~ 0.02 5” R ± 0.015 R>2 R ± 0.020 SA124
