Каталог Winstar монолитный инструмент 2020 - страница 133

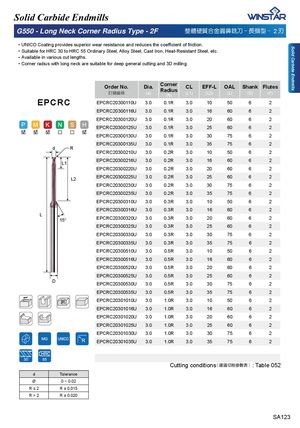

Solid Carbide Endmills Solid Carbide Endmills G550 - Long Neck Corner Radius Type - 2F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚAvailable in various cut lengths. ᅚCorner radius with long neck are suitable for deep general cutting and 3D milling. Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1)EFF-L OAL Shank Flutes(L2)(L)(D)(F) EPCRC EPCRC20300110U 3.0 0.1R 3.0 10 50 6 2 EPCRC20300116U 3.0 0.1R 3.0 16 60 6 2 EPCRC20300120U 3.0 0.1R 3.0 20 60 6 2 EPCRC20300125U 3.0 0.1R 3.0 25 60 6 2 EPCRC20300130U 3.0 0.1R 3.0 30 75 6 2 EPCRC20300135U 3.0 0.1R 3.0 35 75 6 2 d R EPCRC20300210U 3.0 0.2R 3.0 10 50 6 2 L1 EPCRC20300216U 3.0 0.2R 3.0 16 60 6 2 EPCRC20300220U 3.0 0.2R 3.0 20 60 6 2 L2 EPCRC20300225U 3.0 0.2R 3.0 25 60 6 2 EPCRC20300230U 3.0 0.2R 3.0 30 75 6 2 EPCRC20300235U 3.0 0.2R 3.0 35 75 6 2 EPCRC20300310U 3.0 0.3R 3.0 10 50 6 2 EPCRC20300316U 3.0 0.3R 3.0 16 60 6 2 L 15° EPCRC20300320U 3.0 0.3R 3.0 20 60 6 2 EPCRC20300325U 3.0 0.3R 3.0 25 60 6 2 EPCRC20300330U 3.0 0.3R 3.0 30 75 6 2 EPCRC20300335U 3.0 0.3R 3.0 35 75 6 2 EPCRC20300510U 3.0 0.5R 3.0 10 50 6 2 EPCRC20300516U 3.0 0.5R 3.0 16 60 6 2 EPCRC20300520U 3.0 0.5R 3.0 20 60 6 2 EPCRC20300525U 3.0 0.5R 3.0 25 60 6 2 D EPCRC20300530U 3.0 0.5R 3.0 30 75 6 2 EPCRC20300535U 3.0 0.5R 3.0 35 75 6 2 EPCRC20301010U 3.0 1.0R 3.0 10 50 6 2 EPCRC20301016U 3.0 1.0R 3.0 16 60 6 2 EPCRC20301020U 3.0 1.0R 3.0 20 60 6 2 EPCRC20301025U 3.0 1.0R 3.0 25 60 6 2 EPCRC20301030U 3.0 1.0R 3.0 30 75 6 2 EPCRC20301035U 3.0 1.0R 3.0 35 75 6 2 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 052 d Tolerance Ø 0 ~ 0.02 5” R ± 0.015 R>2 R ± 0.020 SA123
