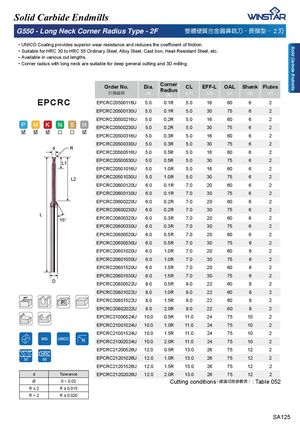

Solid Carbide Endmills Solid Carbide Endmills G550 - Long Neck Corner Radius Type - 2F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚAvailable in various cut lengths. ᅚCorner radius with long neck are suitable for deep general cutting and 3D milling. Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1)EFF-L OAL Shank Flutes(L2)(L)(D)(F) EPCRC EPCRC20500116U 5.0 0.1R 5.0 16 60 6 2 EPCRC20500130U 5.0 0.1R 5.0 30 75 6 2 EPCRC20500216U 5.0 0.2R 5.0 16 60 6 2 EPCRC20500230U 5.0 0.2R 5.0 30 75 6 2 EPCRC20500316U 5.0 0.3R 5.0 16 60 6 2 EPCRC20500330U 5.0 0.3R 5.0 30 75 6 2 d R EPCRC20500516U 5.0 0.5R 5.0 16 60 6 2 L1 EPCRC20500530U 5.0 0.5R 5.0 30 75 6 2 EPCRC20501016U 5.0 1.0R 5.0 16 60 6 2 L2 EPCRC20501030U 5.0 1.0R 5.0 30 75 6 2 EPCRC20600120U 6.0 0.1R 7.0 20 60 6 2 EPCRC20600130U 6.0 0.1R 7.0 30 75 6 2 EPCRC20600220U 6.0 0.2R 7.0 20 60 6 2 EPCRC20600230U 6.0 0.2R 7.0 30 75 6 2 L 15° EPCRC20600320U 6.0 0.3R 7.0 20 60 6 2 EPCRC20600330U 6.0 0.3R 7.0 30 75 6 2 EPCRC20600520U 6.0 0.5R 7.0 20 60 6 2 EPCRC20600530U 6.0 0.5R 7.0 30 75 6 2 EPCRC20601020U 6.0 1.0R 7.0 20 60 6 2 EPCRC20601030U 6.0 1.0R 7.0 30 75 6 2 EPCRC20601520U 6.0 1.5R 7.0 20 60 6 2 EPCRC20601530U 6.0 1.5R 7.0 30 75 6 2 D EPCRC20800522U 8.0 0.5R 9.0 22 60 8 2 EPCRC20801022U 8.0 1.0R 9.0 22 60 8 2 EPCRC20801522U 8.0 1.5R 9.0 22 60 8 2 EPCRC20802022U 8.0 2.0R 9.0 22 60 8 2 EPCRC21000524U 10.0 0.5R 11.0 24 75 10 2 EPCRC21001024U 10.0 1.0R 11.0 24 75 10 2 EPCRC21001524U 10.0 1.5R 11.0 24 75 10 2 EPCRC21002024U 10.0 2.0R 11.0 24 75 10 2 EPCRC21200526U 12.0 0.5R 13.0 26 75 12 2 EPCRC21201026U 12.0 1.0R 13.0 26 75 12 2 EPCRC21201526U 12.0 1.5R 13.0 26 75 12 2 d Tolerance EPCRC21202026U 12.0 2.0R 13.0 26 75 12 2 Ø 0 ~ 0.02 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 052 5” R ± 0.015 R>2 R ± 0.020 SA125
