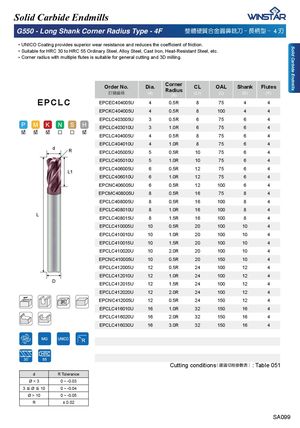

Solid Carbide Endmills Solid Carbide Endmills G550 - Long Shank Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆㥓⤚ .!4 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚ &RUQHUUDGLXVZLWKPXOWLSOHÀXWHVLVVXLWDEOHIRUJHQHUDOFXWWLQJDQG'PLOOLQJ Order No.宑庋佷䩋 Dia. (d) CornerRadius(R)CL(L1) OAL Shank Flutes(L)(D)(F) EPCLC EPCEC404005U 4 0.5R 8 75 4 4 EPCKC404005U 4 0.5R 8 100 4 4 EPCLC403005U 3 0.5R 6 75 6 4 EPCLC403010U 3 1.0R 6 75 6 4 EPCLC404005U 4 0.5R 8 75 6 4 EPCLC404010U 4 1.0R 8 75 6 4 d R EPCLC405005U 5 0.5R 10 75 6 4 EPCLC405010U 5 1.0R 10 75 6 4 L1 EPCLC406005U 6 0.5R 12 75 6 4 EPCLC406010U 6 1.0R 12 75 6 4 EPCNC406005U 6 0.5R 12 100 6 4 EPCMC408005U 8 0.5R 16 75 8 4 EPCLC408005U 8 0.5R 16 100 8 4 EPCLC408010U 8 1.0R 16 100 8 4 L EPCLC408015U 8 1.5R 16 100 8 4 EPCLC410005U 10 0.5R 20 100 10 4 EPCLC410010U 10 1.0R 20 100 10 4 EPCLC410015U 10 1.5R 20 100 10 4 EPCLC410020U 10 2.0R 20 100 10 4 EPCNC410005U 10 0.5R 20 150 10 4 EPCLC412005U 12 0.5R 24 100 12 4 EPCLC412010U 12 1.0R 24 100 12 4 D EPCLC412015U 12 1.5R 24 100 12 4 EPCLC412020U 12 2.0R 24 100 12 4 EPCNC412005U 12 0.5R 24 150 12 4 EPCLC416010U 16 1.0R 32 150 16 4 EPCLC416020U 16 2.0R 32 150 16 4 EPCLC416030U 16 3.0R 32 150 16 4 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 051 d R Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 R ± 0.02 SA099
