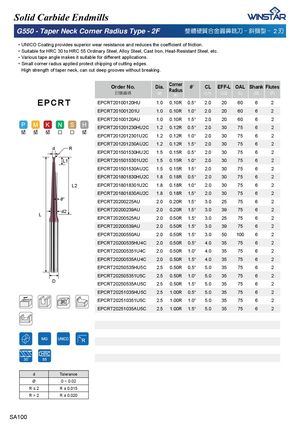

Solid Carbide Endmills G550 - Taper Neck Corner Radius Type - 2F 㜃汣䧻幹▗捠⢢烊搠⎏ . 㜫槇⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚ 9DULRXVWDSHDQJOHPDNHVLWVXLWDEOHIRUGLႇHUHQWDSSOLFDWLRQV ᅚSmall corner radius applied protect chipping of cutting edges. High strength of taper neck, can cut deep grooves without breaking. Order No.宑庋佷䩋 Dia.(d) CornerRadius(R)șÛCL EFF-L OAL Shank Flutes(L1)(L2)(L)(D)(F) EPCRT EPCRT20100120HU 1.0 0.10R 0.5° 2.0 20 60 6 2 EPCRT201001201U 1.0 0.10R 1.0° 2.0 20 60 6 2 EPCRT20100120AU 1.0 0.10R 1.5° 2.0 20 60 6 2 EPCRT201201230HU2C 1.2 0.12R 0.5° 2.0 30 75 6 2 EPCRT2012012301U2C 1.2 0.12R 1.0° 2.0 30 75 6 2 EPCRT201201230AU2C 1.2 0.12R 1.5° 2.0 30 75 6 2 d R EPCRT201501530HU2C 1.5 0.15R 0.5° 2.0 30 75 6 2 L1 EPCRT2015015301U2C 1.5 0.15R 1.0° 2.0 30 75 6 2 EPCRT201501530AU2C 1.5 0.15R 1.5° 2.0 30 75 6 2 EPCRT201801830HU2C 1.8 0.18R 0.5° 2.0 30 75 6 2 L2 EPCRT2018018301U2C 1.8 0.18R 1.0° 2.0 30 75 6 2 EPCRT201801830AU2C 1.8 0.18R 1.5° 2.0 30 75 6 2 ș° EPCRT20200225AU 2.0 0.20R 1.5° 3.0 25 75 6 2 L d2 EPCRT20200239AU 2.0 0.20R 1.5° 3.0 39 75 6 2EPCRT20200525AU2.00.50R1.5°3.0257562 EPCRT20200539AU 2.0 0.50R 1.5° 3.0 39 75 6 2 EPCRT20200550AU 2.0 0.50R 1.5° 3.0 50 100 6 2 EPCRT20200535HU4C 2.0 0.50R 0.5° 4.0 35 75 6 2 EPCRT202005351U4C 2.0 0.50R 1.0° 4.0 35 75 6 2 EPCRT20200535AU4C 2.0 0.50R 1.5° 4.0 35 75 6 2 EPCRT20250535HU5C 2.5 0.50R 0.5° 5.0 35 75 6 2 EPCRT202505351U5C 2.5 0.50R 1.0° 5.0 35 75 6 2 D EPCRT20250535AU5C 2.5 0.50R 1.5° 5.0 35 75 6 2 EPCRT20251035HU5C 2.5 1.00R 0.5° 5.0 35 75 6 2 EPCRT202510351U5C 2.5 1.00R 1.0° 5.0 35 75 6 2 EPCRT20251035AU5C 2.5 1.00R 1.5° 5.0 35 75 6 2 d Tolerance Ø 0 ~ 0.02 5” R ± 0.015 R>2 R ± 0.020 SA100
