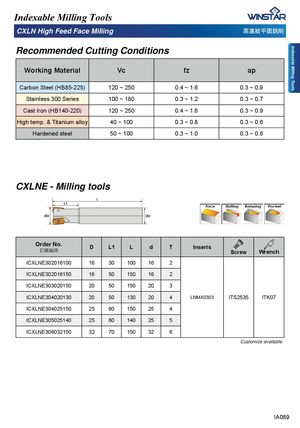

Каталог Winstar инструмент со сменными пластинами 2020 - страница 99

Indexable Milling Tools
CXLN High Feed Face Milling 汧懁仵。棱搠⏙


Indexable Milling Tools
Recommended Cutting Conditions
Working Material Vc fz ap
Carbon Steel (HB85-225) 120 ~ 250 0.4 ~ 1.6 0.3 ~ 0.9
Stainless 300 Series 100 ~ 180 0.3 ~ 1.2 0.3 ~ 0.7
Cast Iron (HB140-220) 120 ~ 250 0.4 ~ 1.6 0.3 ~ 0.9
High temp. & Titanium alloy 40 ~ 100 0.3 ~ 0.8 0.3 ~ 0.6
Hardened steel 50 ~ 100 0.3 ~ 1.0 0.3 ~ 0.6


CXLNE - Milling tools


Order No. D L1 L d T Inserts
宑庋佷䩋 Screw Wrench
ICXLNE302016100 16 30 100 16 2
ICXLNE302016150 16 50 150 16 2
ICXLNE303020150 20 50 150 20 3
ICXLNE304020130 20 50 130 20 4 LNMX0303 ITS2535 ITK07
ICXLNE304025150 25 60 150 25 4
ICXLNE305025140 25 60 140 25 5
ICXLNE306032150 32 70 150 32 6
Customize available.


IA089
