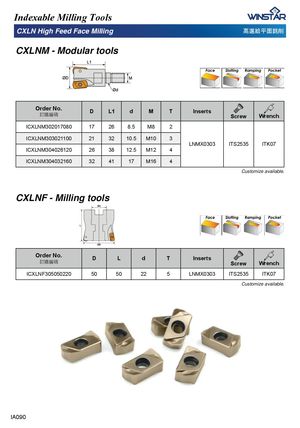

Каталог Winstar инструмент со сменными пластинами 2020 - страница 100

Indexable Milling Tools
CXLN High Feed Face Milling 汧懁仵。棱搠⏙

CXLNM - Modular tools


Order No. D L1 d M T Inserts
宑庋佷䩋 Screw Wrench
ICXLNM302017080 17 26 8.5 M8 2
ICXLNM303021100 21 32 10.5 M10 3
LNMX0303 ITS2535 ITK07
ICXLNM304026120 26 38 12.5 M12 4
ICXLNM304032160 32 41 17 M16 4
Customize available.


CXLNF - Milling tools


Order No. D L d T Inserts
宑庋佷䩋 Screw Wrench
ICXLNF305050220 50 50 22 5 LNMX0303 ITS2535 ITK07
Customize available.


IA090
