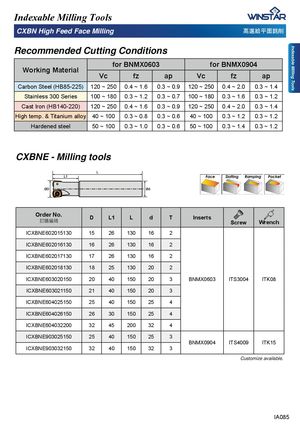

Каталог Winstar инструмент со сменными пластинами 2020 - страница 95

Indexable Milling Tools
CXBN High Feed Face Milling 汧懁仵。棱搠⏙


Indexable Milling Tools
Recommended Cutting Conditions
for BNMX0603 for BNMX0904
Working Material
Vc fz ap Vc fz ap
Carbon Steel (HB85-225) 120 ~ 250 0.4 ~ 1.6 0.3 ~ 0.9 120 ~ 250 0.4 ~ 2.0 0.3 ~ 1.4
Stainless 300 Series 100 ~ 180 0.3 ~ 1.2 0.3 ~ 0.7 100 ~ 180 0.3 ~ 1.6 0.3 ~ 1.2
Cast Iron (HB140-220) 120 ~ 250 0.4 ~ 1.6 0.3 ~ 0.9 120 ~ 250 0.4 ~ 2.0 0.3 ~ 1.4
High temp. & Titanium alloy 40 ~ 100 0.3 ~ 0.8 0.3 ~ 0.6 40 ~ 100 0.3 ~ 1.2 0.3 ~ 1.2
Hardened steel 50 ~ 100 0.3 ~ 1.0 0.3 ~ 0.6 50 ~ 100 0.3 ~ 1.4 0.3 ~ 1.2


CXBNE - Milling tools


Order No. D L1 L d T Inserts
宑庋佷䩋 Screw Wrench
ICXBNE602015130 15 26 130 16 2
ICXBNE602016130 16 26 130 16 2
ICXBNE602017130 17 26 130 16 2
ICXBNE602018130 18 25 130 20 2
ICXBNE603020150 20 40 150 20 3 BNMX0603 ITS3004 ITK08
ICXBNE603021150 21 40 150 20 3
ICXBNE604025150 25 40 150 25 4
ICXBNE604026150 26 30 150 25 4
ICXBNE604032200 32 45 200 32 4
ICXBNE903025150 25 40 150 25 3
BNMX0904 ITS4009 ITK15
ICXBNE903032150 32 40 150 32 3
Customize available.


IA085
