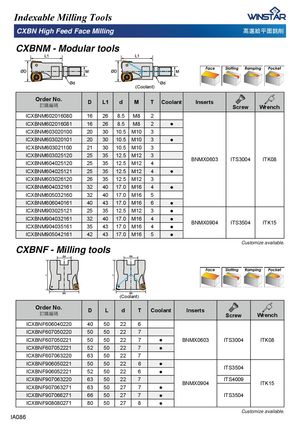

CXBNM - Modular tools
(Coolant) Order No.
D L1 d M T Coolant
宑庋佷䩋
| ICXBNM602016080 | 16 | 26 | 8.5 | M8 2 | |
| ICXBNM602016081 | 16 | 26 | 8.5 | M8 2 | Ɣ |
| ICXBNM603020100 | 20 | 30 | 10.5 M10 | 3 | |
| ICXBNM603020101 | 20 | 30 | 10.5 M10 | 3 | Ɣ |
| ICXBNM603021100 | 21 | 30 | 10.5 M10 | 3 | |
| ICXBNM603025120 | 25 | 35 | 12.5 M12 | 3 | |
| ICXBNM604025120 | 25 | 35 | 12.5 M12 | 4 | |
| ICXBNM604025121 | 25 | 35 | 12.5 M12 | 4 | Ɣ |
| ICXBNM603026120 | 26 | 35 | 12.5 M12 | 3 | |
| ICXBNM604032161 | 32 | 40 | 17.0 M16 | 4 | Ɣ |
| ICXBNM605032160 | 32 | 40 | 17.0 M16 | 5 | |
| ICXBNM606040161 | 40 | 43 | 17.0 M16 | 6 | Ɣ |
| ICXBNM903025121 | 25 | 35 | 12.5 M12 | 3 | Ɣ |
| ICXBNM904032161 | 32 | 40 | 17.0 M16 | 4 | Ɣ |
| ICXBNM904035161 | 35 | 43 | 17.0 M16 | 4 | Ɣ |
| ICXBNM905042161 | 42 | 43 | 17.0 M16 | 5 | Ɣ |
CXBNF - Milling tools
Inserts Screw Wrench
| BNMX0603 | ITS3004 | ITK08 |
| BNMX0904 | ITS3504 | ITK15 |
Customize available.
(Coolant) Order No.
D L d T Coolant Inserts
宑庋佷䩋 Screw Wrench
| ICXBNF606040220 | 40 | 50 | 22 | 6 | |
| ICXBNF607050220 | 50 | 50 | 22 | 7 | |
| ICXBNF607050221 | 50 | 50 | 22 | 7 | ITK08 ITS3004 BNMX0603 Ɣ |
| ICXBNF607052221 | 52 | 50 | 22 | 7 | Ɣ |
| ICXBNF607063220 | 63 | 50 | 22 | 7 | |
| ICXBNF906050221 | 50 | 50 | 22 | 6 | Ɣ |
ITS3504
| ICXBNF906052221 | 52 | 50 | 22 | 6 | Ɣ | |
| ICXBNF907063220 | 63 | 50 | 22 | 7 | ITS4009 |
BNMX0904 ITK15
| ICXBNF907063271 | 63 | 50 | 27 | 7 | Ɣ | |
| ICXBNF907066271 | 66 | 50 | 27 | 7 | Ɣ | ITS3504 |
| ICXBNF908080271 | 80 | 50 | 27 | 8 | Ɣ |
