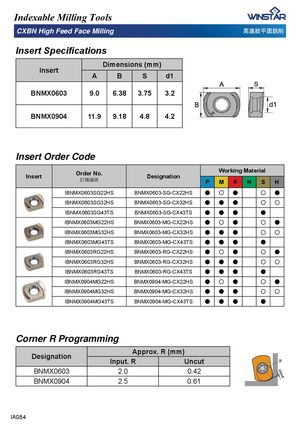

Каталог Winstar инструмент со сменными пластинами 2020 - страница 94

Indexable Milling Tools
CXBN High Feed Face Milling 汧懁仵。棱搠⏙

,QVHUW6SHFL¿FDWLRQV
Dimensions (mm)
Insert
A B S d1
BNMX0603 9.0 6.38 3.75 3.2

BNMX0904 11.9 9.18 4.8 4.2


Insert Order Code
Order No. Working Material
Insert 宑庋佷䩋
Designation
P M K N S H
IBNMX0603SG22HS BNMX0603-SG-CX22HS β ΰ β ΰ β
IBNMX0603SG32HS BNMX0603-SG-CX32HS β β β ΰ ΰ
IBNMX0603SG43TS BNMX0603-SG-CX43TS β β β β
IBNMX0603MG22HS BNMX0603-MG-CX22HS β ΰ β ΰ β
IBNMX0603MG32HS BNMX0603-MG-CX32HS β β β ΰ ΰ
IBNMX0603MG43TS BNMX0603-MG-CX43TS β β β β
IBNMX0603RG22HS BNMX0603-RG-CX22HS β ΰ β ΰ β
IBNMX0603RG32HS BNMX0603-RG-CX32HS β β β ΰ ΰ
IBNMX0603RG43TS BNMX0603-RG-CX43TS β β β β
IBNMX0904MG22HS BNMX0904-MG-CX22HS β ΰ β ΰ β
IBNMX0904MG32HS BNMX0904-MG-CX32HS β β β ΰ ΰ
IBNMX0904MG43TS BNMX0904-MG-CX43TS β β β β


Corner R Programming
Approx. R (mm)
Designation
Input. R Uncut
BNMX0603 2.0 0.42
BNMX0904 2.5 0.61
