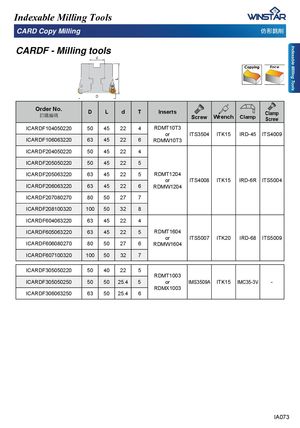

CARDF - Milling tools
| Order No. ���� | D | L | d | T | Inserts | Screw | Wrench | Clamp | Clamp Screw |
| ICARDF104050220 | 50 | 45 | 22 | 4 | RDMT10T3 | ||||
| ICARDF106063220 | 63 | 45 | 22 | 6 | or RDMW10T3 | ITS3504 | ITK15 | IRD-45 | ITS4009 |
| ICARDF204050220 | 50 | 45 | 22 | 4 | |||||
| ICARDF205050220 | 50 | 45 | 22 | 5 | |||||
| ICARDF205063220 | 63 | 45 | 22 | 5 | RDMT1204 | ITS4008 | ITK15 | IRD6R | ITS5004 |
| ICARDF206063220 | 63 | 45 | 22 | 6 | or RDMW1204 | - | |||
| ICARDF207080270 | 80 | 50 | 27 | 7 | |||||
| ICARDF208100320 | 100 | 50 | 32 | 8 | |||||
| ICARDF604063220 | 63 | 45 | 22 | 4 | |||||
| ICARDF605063220 | 63 | 45 | 22 | 5 | RDMT1604 | ||||
| ICARDF606080270 | 80 | 50 | 27 | 6 | or RDMW1604 | ITS5007 | ITK20 | IRD-68 | ITS5009 |
| ICARDF607100320 | 100 | 50 | 32 | 7 | |||||
| ICARDF305050220 | 50 | 40 | 22 | 5 | RDMT1003 | ||||
| ICARDF305050250 | 50 | 50 | 25.4 | 5 | or | IMS3509A | ITK15 | IMC35-3V | - |
| ICARDF306063250 | 63 | 50 | 25.4 | 6 | RDMX1003 |
