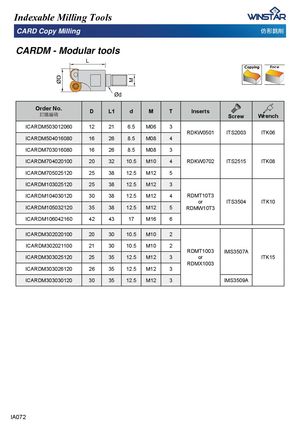

CARDM - Modular tools
| Order No. ���� | D | L1 | d | M | T | Inserts | Screw | Wrench |
| ICARDM503012060 | 12 | 21 | 6.5 | M06 | 3 | RDKW0501 | ITS2003 | ITK06 |
| ICARDM504016080 | 16 | 26 | 8.5 | M08 | 4 | |||
| ICARDM703016080 | 16 | 26 | 8.5 | M08 | 3 | |||
| ICARDM704020100 | 20 | 32 | 10.5 | M10 | 4 | RDKW0702 | ITS2515 | ITK08 |
| ICARDM705025120 | 25 | 38 | 12.5 | M12 | 5 | |||
| ICARDM103025120 | 25 | 38 | 12.5 | M12 | 3 | |||
| ICARDM104030120 | 30 | 38 | 12.5 | M12 | 4 | RDMT10T3 | ITS3504 | ITK10 |
| ICARDM105032120 | 35 | 38 | 12.5 | M12 | 5 | or RDMW10T3 | ||
| ICARDM106042160 | 42 | 43 | 17 | M16 | 6 | |||
| ICARDM302020100 | 20 | 30 | 10.5 | M10 | 2 | |||
| ICARDM302021100 | 21 | 30 | 10.5 | M10 | 2 | |||
| ICARDM303025120 | 25 | 35 | 12.5 | M12 | 3 | RDMT1003 or | IMS3507A | ITK15 |
| ICARDM303026120 | 26 | 35 | 12.5 | M12 | 3 | RDMX1003 | ||
| ICARDM303030120 | 30 | 35 | 12.5 | M12 | 3 | IMS3509A |
