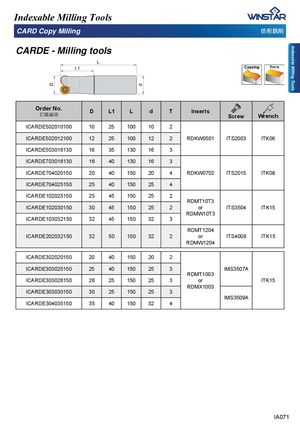

CARDE - Milling tools
| Order No. ���� | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICARDE502010100 | 10 | 25 | 100 | 10 | 2 | |||
| ICARDE502012100 | 12 | 25 | 100 | 12 | 2 | RDKW0501 | ITS2003 | ITK06 |
| ICARDE503016130 | 16 | 35 | 130 | 16 | 3 | |||
| ICARDE703016130 | 16 | 40 | 130 | 16 | 3 | |||
| ICARDE704020150 | 20 | 40 | 150 | 20 | 4 | RDKW0702 | ITS2015 | ITK08 |
| ICARDE704025150 | 25 | 40 | 150 | 25 | 4 | |||
| ICARDE102025150 | 25 | 45 | 150 | 25 | 2 | RDMT10T3 | ||
| ICARDE102030150 | 30 | 45 | 150 | 25 | 2 | or | ITS3504 | ITK15 |
| ICARDE103032150 | 32 | 45 | 150 | 32 | 3 | RDMW10T3 | ||
| ICARDE202032150 | 32 | 50 | 150 | 32 | 2 | RDMT1204 or RDMW1204 | ITS4008 | ITK15 |
| ICARDE302020150 | 20 | 40 | 150 | 20 | 2 | |||
| ICARDE303025150 | 25 | 40 | 150 | 25 | 3 | RDMT1003 | IMS3507A | |
| ICARDE303026150 | 26 | 25 | 150 | 25 | 3 | or | ITK15 | |
| ICARDE303030150 | 30 | 25 | 150 | 25 | 3 | RDMX1003 | ||
| ICARDE304035150 | 35 | 40 | 150 | 32 | 4 | IMS3509A |
