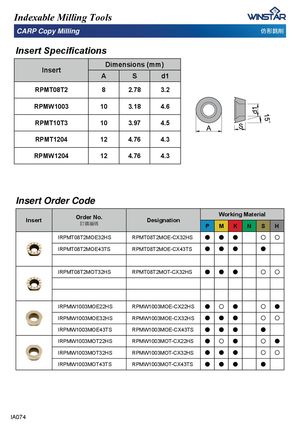

,QVHUW6SHFL¿FDWLRQV
| It | Dim | ensions ( | mm) |
| nser | A | S | d1 |
| RPMT08T2 | 8 | 2.78 | 3.2 |
| RPMW1003 | 10 | 3.18 | 4.6 |
| RPMT10T3 | 10 | 3.97 | 4.5 |
| RPMT1204 | 12 | 4.76 | 4.3 |
| RPMW1204 | 12 | 4.76 | 4.3 |
Insert Order Code
| Insert | Order No. | Designation | Wo | rking | Mat | erial | ||
| ���� | P | M | K | N | S | H | ||
| IRPMT08T2MOE32HS | RPMT08T2MOE-CX32HS | � | � | � | � | � | ||
| IRPMT08T2MOE43TS | RPMT08T2MOE-CX43TS | � | � | � | � | |||
| IRPMT08T2MOT32HS | RPMT08T2MOT-CX32HS | � | � | � | � | � | ||
| IRPMW1003MOE22HS | RPMW1003MOE-CX22HS | � | � | � | � | � | ||
| IRPMW1003MOE32HS | RPMW1003MOE-CX32HS | � | � | � | � | � | ||
| IRPMW1003MOE43TS | RPMW1003MOE-CX43TS | � | � | � | � | |||
| IRPMW1003MOT22HS | RPMW1003MOT-CX22HS | � | � | � | � | � | ||
| IRPMW1003MOT32HS | RPMW1003MOT-CX32HS | � | � | � | � | � | ||
| IRPMW1003MOT43TS | RPMW1003MOT-CX43TS | � | � | � | � |
