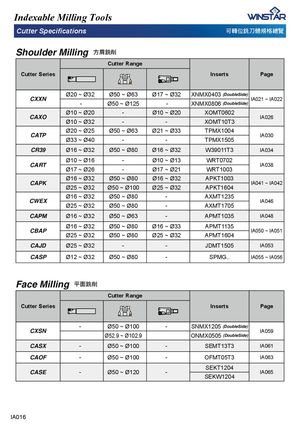

Shoulder Milling 㝈券搠⏙
| Cutter Series | Cutter Range | Inserts | Page | ||
| CXXN | Ø20 ~ Ø32 | Ø50 ~ Ø63 | Ø17 ~ Ø32 | XNMX0403(DoubleSide) | IA021 ~ IA022 |
| - | Ø50 ~ Ø125 | - | XNMX0806(DoubleSide) | ||
| CAXO | Ø10 ~ Ø20 | - | Ø10 ~ Ø20 | XOMT0602 | IA026 |
| Ø10 ~ Ø32 | - | - | XOMT10T3 | ||
| CATP | Ø20 ~ Ø25 | Ø50 ~ Ø63 | Ø21 ~ Ø33 | TPMX1004 | IA030 |
| Ø33 ~ Ø40 | - | - | TPMX1505 | ||
| CR39 | Ø16 ~ Ø32 | Ø50 ~ Ø80 | Ø16 ~ Ø32 | W39011T3 | IA034 |
| CART | Ø10 ~ Ø16 | - | Ø10 ~ Ø13 | WRT0702 | IA |
| Ø17 ~ Ø26 | - | Ø17 ~ Ø21 | WRT1003 | 038 | |
| CAPK | Ø16 ~ Ø32 | Ø50 ~ Ø80 | Ø16 ~ Ø32 | APKT1003 | IA041 ~ IA042 |
| Ø25 ~ Ø32 | Ø50 ~ Ø100 | Ø25 ~ Ø32 | APKT1604 | ||
| WEX | Ø16 ~ Ø32 | Ø50 ~ Ø80 | - | AXMT1235 | |
| C | Ø25 ~ Ø32 | Ø50 ~ Ø80 | - | AXMT1705 | IA046 |
| CAPM | Ø16 ~ Ø32 | Ø50 ~ Ø63 | - | APMT1035 | IA048 |
| Ø16 ~ Ø32 | Ø50 ~ Ø80 | Ø16 ~ Ø33 | APMT1135 | ||
| CBAP | Ø25 ~ Ø32 | Ø50 ~ Ø80 | Ø25 ~ Ø32 | APMT1604 | IA050 ~ IA051 |
| CAJD | Ø25 ~ Ø32 | - | - | JDMT1505 | IA053 |
| CASP | Ø12 ~ Ø32 | Ø50 ~ Ø80 | - | SPMG.. | IA055 ~ IA056 |
Face Milling 。棱搠⏙
| Cutter Range | |||||
| Cutter Series | Inserts | Page | |||
| CXSN | - | Ø50 ~ Ø100 | - | SNMX1205(DoubleSide) | IA059 |
| Ø52.9 ~ Ø102.9 | ONMX0505(DoubleSide) | ||||
| CASX | - | Ø50 ~ Ø100 | - | SEMT13T3 | IA061 |
| CAOF | - | Ø50 ~ Ø100 | - | OFMT05T3 | IA063 |
| CASE | - | Ø50 ~ Ø120 | - | SEKT1204 SEKW1204 | IA065 |
