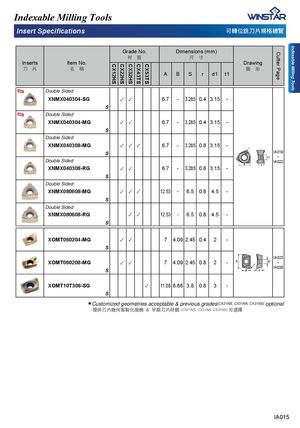

| Inserts ���� | Item No. ���� | CX | Gr CX | ad ��� CX | e N ��� CX | o. CX | Dim | ensio ��� | ns (m ��� | m) | Dra ��� | wing ��� | Cutter P | |||
| 12HS | 22HS | 32HS | 43TS | 53TS | A | B | S | r | d1 | t1 | age | |||||
| XNMX040304-SG Double Sided | S | ✓ | ✓ | 6.7 | - | 3.285 | 0.4 | 3.15 | - | |||||||
| XNMX040304-MG Double Sided | S | ✓ | ✓ | 6.7 | - | 3.285 | 0.4 | 3.15 | - | |||||||
| XNMX040308-MG Double Sided | S | ✓ | ✓ | ✓ | 6.7 | - | 3.285 | 0.8 | 3.15 | - | r | IA019 | ||||
| XNMX040308-RG Double Sided | S | ✓ | ✓ | 6.7 | - | 3.285 | 0.8 | 3.15 | - | s d1 | ~ IA022 | |||||
| XNMX080608-MG Double Sided | S | ✓ | ✓ | ✓ | 12.53 | - | 6.5 | 0.8 | 4.5 | - | ||||||
| XNMX080608-RG Double Sided | S | ✓ | ✓ | 12.53 | - | 6.5 | 0.8 | 4.5 | - | |||||||
| XOMT060204-MG | S | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.4 | 2 | - | |||||||
| XOMT060208-MG | S | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.8 | 2 | - | IA023 ~ IA026 | ||||||
| XOMT10T308-SG | S | ✓ | 11.08 | 6.86 | 3.8 | 0.8 | 3 | - |
*Customized geometries acceptable & previous grades optional (CX21NS, CX31NA, CX31NS) 㕟K⎏䏖」⃤ⴱ媌⒥㢜⑨!&!㝸㢮⎏䏖㣟幹 (CX21NS, CX31NA, CX31NS) ╾戇㙖
