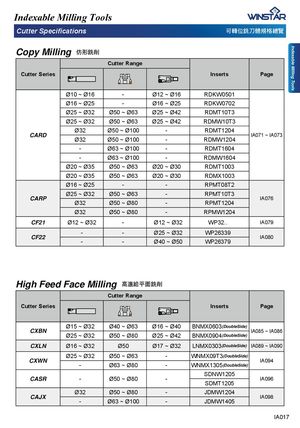

Copy Milling ₎ヱ搠⏙
| Cutter Range | |||||
| Ctt Si | It | P | |||
| uer eres | nsers | age | |||
| Ø10 ~ Ø16 | - | Ø12 ~ Ø16 | RDKW0501 | ||
| Ø16 ~ Ø25 | - | Ø16 ~ Ø25 | RDKW0702 | ||
| Ø25 ~ Ø32 | Ø50 ~ Ø63 | Ø25 ~ Ø42 | RDMT10T3 | ||
| Ø25 ~ Ø32 | Ø50 ~ Ø63 | Ø25 ~ Ø42 | RDMW10T3 | ||
| CARD | Ø32 | Ø50 ~ Ø100 | - | RDMT1204 | IA071 ~ IA073 |
| Ø32 | Ø50 ~ Ø100 | - | RDMW1204 | ||
| - | Ø63 ~ Ø100 | - | RDMT1604 | ||
| - | Ø63 ~ Ø100 | - | RDMW1604 | ||
| Ø20 ~ Ø35 | Ø50 ~ Ø63 | Ø20 ~ Ø30 | RDMT1003 | ||
| Ø20 ~ Ø35 | Ø50 ~ Ø63 | Ø20 ~ Ø30 | RDMX1003 | ||
| Ø16 ~ Ø25 | - | - | RPMT08T2 | ||
| CARP | Ø25 ~ Ø32 | Ø50 ~ Ø63 | - | RPMT10T3 | IA076 |
| Ø32 | Ø50 ~ Ø80 | - | RPMT1204 | ||
| Ø32 | Ø50 ~ Ø80 | - | RPMW1204 | ||
| CF21 | Ø12 ~ Ø32 | - | Ø12 ~ Ø32 | WP32.. | IA079 |
| - | - | Ø25 ~ Ø32 | WP26339 | ||
| CF22 | - | - | Ø40 ~ Ø50 | WP26379 | IA080 |
High Feed Face Milling 汧懁仵。棱搠⏙
| Cutter Range | |||||
| Cutter Series | Inserts | Page | |||
| CXBN | Ø15 ~ Ø32 | Ø40 ~ Ø63 | Ø16 ~ Ø40 | BNMX0603(DoubleSide) | IA085 ~ IA086 |
| Ø25 ~ Ø32 | Ø50 ~ Ø80 | Ø25 ~ Ø42 | BNMX0904(DoubleSide) | ||
| CXLN | Ø16 ~ Ø32 | Ø50 | Ø17 ~ Ø32 | LNMX0303(DoubleSide) | IA089 ~ IA090 |
| CXWN | Ø25 ~ Ø32 | Ø50 ~ Ø63 | - | WNMX09T3(DoubleSide) | IA094 |
| - | Ø63 ~ Ø80 | - | WNMX1305(DoubleSide) | ||
| CASR | - | Ø50 ~ Ø80 | - | SDNW1205 SDMT1205 | IA096 |
| CAJX | Ø32 | Ø50 ~ Ø80 | - | JDMW1204 | IA098 |
| - | Ø63 ~ Ø100 | - | JDMW1405 |
