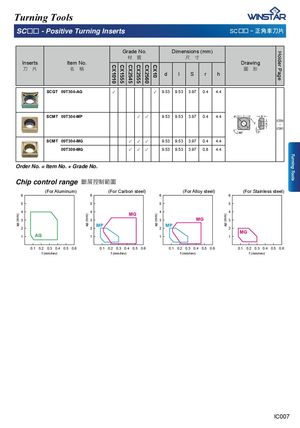

SCΩΩ - Positive Turning Inserts SCΩΩ . 㳲孡恙⎏䏖
Grade No. Dimensions (mm)
㣟!!幹 ⷉ!!ⶇ
| Inserts | Item No. | Drawing |
| ⎏!!䏖 | ▜!!䯀 | ⢥!!ヱ |
| d | l | S | r | h | |||
| SCGT 09T304-AG | ✓ | ✓ | 9.53 | 9.53 | 3.97 | 0.4 | 4.4 |
| SCMT 09T304-MP | ✓ | ✓ | 9.53 | 9.53 | 3.97 | 0.4 | 4.4 | ||
| SCMT 09T304-MG | ✓ | ✓ | ✓ | 9.53 | 9.53 | 3.97 | 0.4 | 4.4 | |
| 09T308-MG | ✓ | ✓ | ✓ | 9.53 | 9.53 | 3.97 | 0.8 | 4.4 |
IC059 IC061
Order No. = Item No. + Grade No.
Chip control range 㝆ⷠ㔶⏅䵓⢜
(For Aluminum) (For Carbon steel) (For Alloy steel) (For Stainless steel)
| 6 | 6 | 6 | 6 |
| 5 | 5 | 5 | 5 |
| 4 | 4 | MG 4 | 4 |
| MG | |||
| 3 | 3 | 3 | 3 |
| MP | MP | ||
| 2 | 2 | 2 | 2 |
| MG | |||
| 1 | AG 1 | 1 | 1 |
0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6
f (mm/rev) f (mm/rev) f (mm/rev) f (mm/rev)
