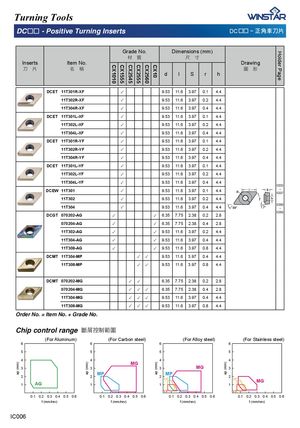

DCΩΩ - Positive Turning Inserts DCΩΩ . 㳲孡恙⎏䏖
| Inserts �� | Item No. �� | C | Gr �� C | ade ��� C | N ��� C | o. C C | Dime | nsions ���� | (mm) �� | Drawing �� | Holder | |||
| ���� | ���� | X1010 | X1555 | X2545 | X2555 | X2560 X10 | d | l | S | r | h | ���� | Page | |
| DCET | 11T301R-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.1 | 4.4 | |||||||
| 11T302R-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.2 | 4.4 | ||||||||
| 11T304R-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | ||||||||
| DCET | 11T301L-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.1 | 4.4 | |||||||
| 11T302L-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.2 | 4.4 | ||||||||
| 11T304L-XF | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | ||||||||
| DCET | 11T301R-YF | ✓ | 9.53 | 11.6 | 3.97 | 0.1 | 4.4 | |||||||
| 11T302R-YF | ✓ | 9.53 | 11.6 | 3.97 | 0.2 | 4.4 | ||||||||
| 11T304R-YF | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | ||||||||
| DCET | 11T301L-YF | ✓ | 9.53 | 11.6 | 3.97 | 0.1 | 4.4 | |||||||
| 11T302L-YF | ✓ | 9.53 | 11.6 | 3.97 | 0.2 | 4.4 | ||||||||
| 11T304L-YF | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | IC033 | |||||||
| DCEW | 11T301 | ✓ | 9.53 | 11.6 | 3.97 | 0.1 | 4.4 | ~ IC037 | ||||||
| 11T302 | ✓ | 9.53 | 11.6 | 3.97 | 0.2 | 4.4 | ||||||||
| 11T304 | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | IC056 ~ | |||||||
| DCGT | 070202-AG | ✓ | ✓ | 6.35 | 7.75 | 2.38 | 0.2 | 2.8 | IC058 | |||||
| 070204-AG | ✓ | ✓ | 6.35 | 7.75 | 2.38 | 0.4 | 2.8 | |||||||
| 11T302-AG | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.2 | 4.4 | |||||||
| 11T304-AG | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | |||||||
| 11T308-AG | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.8 | 4.4 | |||||||
| DCMT | 11T304-MP | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | ||||||
| 11T308-MP | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.8 | 4.4 | |||||||
| DCMT | 070202-MG | ✓ | ✓ | 6.35 | 7.75 | 2.38 | 0.2 | 2.8 | ||||||
| 070204-MG | ✓ | ✓ | ✓ | 6.35 | 7.75 | 2.38 | 0.4 | 2.8 | ||||||
| 11T304-MG | ✓ | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.4 | 4.4 | ||||||
| 11T308-MG | ✓ | ✓ | ✓ | 9.53 | 11.6 | 3.97 | 0.8 | 4.4 |
Order No. = Item No. + Grade No.
Chip control range 㝆ⷠ㔶⏅䵓⢜
(For Aluminum) (For Carbon steel) (For Alloy steel) (For Stainless steel)
| 6 | 6 | 6 | 6 | |
| 5 | 5 | 5 | 5 | |
| 4 | 4 | 4 | 4 | |
| MG | ||||
| 3 | 3 | 3 | MG 3 | |
| MP | MP | |||
| 2 | 2 | 2 | 2 | |
| XF | MG XF | |||
| AG | ||||
| 1 | 1 | 1 | 1 | |
| YF | YF |
f (mm/rev) f (mm/rev) f (mm/rev) f (mm/rev)
