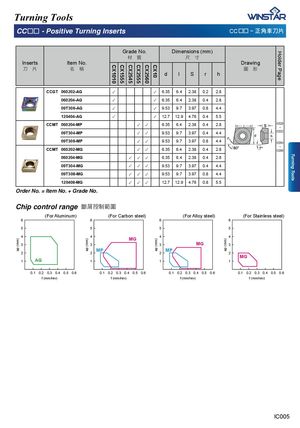

CCΩΩ - Positive Turning Inserts CCΩΩ . 㳲孡恙⎏䏖
Grade No. Dimensions (mm)
㣟!!幹 ⷉ!!ⶇ
| Inserts | Item No. | Drawing |
| ⎏!!䏖 | ▜!!䯀 | ⢥!!ヱ |
| d | l S | r | h | |||||||||
| CCGT 060202-AG | ✓ | ✓ | 6.35 | 6.4 | 2.38 | 0.2 | 2.8 | |||||
| 060204-AG | ✓ | ✓ | 6.35 | 6.4 | 2.38 | 0.4 | 2.8 | |||||
| 09T308-AG | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.8 | 4.4 | |||||
| 120404-AG | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.4 | 5.5 | |||||
| CCMT 060204-MP | ✓ | ✓ | 6.35 | 6.4 | 2.38 | 0.4 | 2.8 | IC029 | ||||
| 09T304-MP | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.4 | 4.4 | IC032 | ||||
| 09T308-MP | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.8 | 4.4 | |||||
| IC054 | ||||||||||||
| CCMT 060202-MG | 6.35 | 6.4 | 2.38 | 0.4 | 2.8 | IC056 | ||||||
| 060204-MG | ✓ | ✓ | ✓ | 6.35 | 6.4 | 2.38 | 0.4 | 2.8 | ||||
| 09T304-MG | ✓ | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.4 | 4.4 | ||||
| 09T308-MG | ✓ | ✓ | ✓ | 9.53 | 9.7 | 3.97 | 0.8 | 4.4 | ||||
| 120408-MG | ✓ | ✓ | ✓ | 12.7 | 12.9 | 4.76 | 0.8 | 5.5 | ||||
| Order No. = Item No. + Grade No. | ||||||||||||
| Chip control range | 㝆ⷠ㔶⏅䵓⢜ | |||||||||||
| (For Aluminum) | (For Carbon steel) | (For Alloy steel) | (For Stainless steel) |
| 6 | 6 | 6 | 6 |
| 5 | 5 | 5 | 5 |
| 4 | 4 | MG 4 | 4 |
| 3 | 3 | 3 | MG 3 |
| MP | MP | ||
| 2 | 2 | 2 | 2 |
| MG | |||
| 1 | AG 1 | 1 | 1 |
0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6
f (mm/rev) f (mm/rev) f (mm/rev) f (mm/rev)
