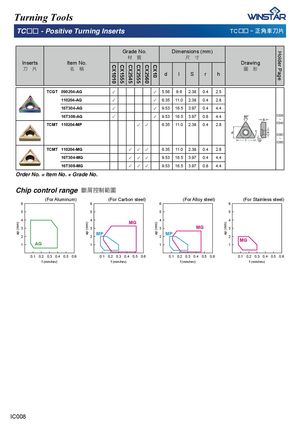

CX1010 CX1555 CX2545 CX2555 CX2560 CX10 Holder Page Turning Tools TCΩΩ - Positive Turning Inserts TCΩΩ . 㳲孡恙⎏䏖 Grade No. Dimensions (mm) 㣟!!幹 ⷉ!!ⶇ Inserts Item No. Drawing ⎏!!䏖 ▜!!䯀 ⢥!!ヱ d l S r h TCGT 090204-AG ✓ ✓ 5.56 9.6 2.38 0.4 2.5 110204-AG ✓ ✓ 6.35 11.0 2.38 0.4 2.8 16T304-AG ✓ ✓ 9.53 16.5 3.97 0.4 4.4 16T308-AG ✓ ✓ 9.53 16.5 3.97 0.8 4.4 IC038~ TCMT 110204-MP ✓ ✓ 6.35 11.0 2.38 0.4 2.8 IC040 IC062 ~ IC063 TCMT 110204-MG ✓ ✓ ✓ 6.35 11.0 2.38 0.4 2.8 16T304-MG ✓ ✓ ✓ 9.53 16.5 3.97 0.4 4.4 16T308-MG ✓ ✓ ✓ 9.53 16.5 3.97 0.8 4.4 Order No. = Item No. + Grade No. Chip control range 㝆ⷠ㔶⏅䵓⢜ (For Aluminum) (For Carbon steel) (For Alloy steel) (For Stainless steel) 6 6 6 6 5 5 5 5 4 4 MG 4 4 3 3 3 MG 3 2 2 MP 2 MP 2 1 AG 1 1 MG1 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.1 0.2 0.3 0.4 0.5 0.6 f (mm/rev) f (mm/rev) f (mm/rev) f (mm/rev) IC008 ap (mm) ap (mm) ap (mm) ap (mm)
