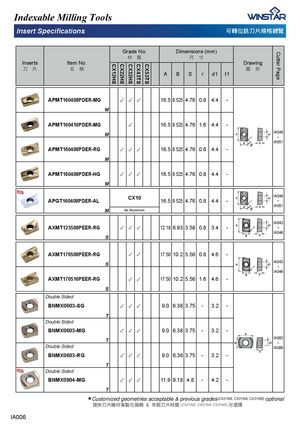

| Inserts ���� | Item No. ���� | Gr CX CX | ad ��� CX | e N ��� CX | o. CX | Dim | ensio ��� | ns (m ��� | m) | Draw ��� | ing ��� Cutter P | ||
| �� | �� | 12HS 22HS | 32HS | 43TS | 53TS | A | B | S | r | d1 | t1 | �� | �� age |
| APMT160408PDER-MG M | ✓ | ✓ | ✓ | 16.5 | 9.525 | 4.76 | 0.8 | 4.4 | - | ||||
| APMT160416PDER-MG M | ✓ | 16.5 | 9.525 | 4.76 | 1.6 | 4.4 | - | IA049 ~ | |||||
| APMT160408PDER-RG M | ✓ | ✓ | ✓ | 16.5 | 9.525 | 4.76 | 0.8 | 4.4 | - | IA051 | |||
| APMT160408PDER-HG M | ✓ | ✓ | ✓ | 16.5 | 9.525 | 4.76 | 0.8 | 4.4 | - | ||||
| APGT160408PDER-AL M | fo | CX r Alu | 10 minum | 16.5 | 9.525 | 4.76 | 0.8 | 4.4 | - | IA049 ~ IA051 | |||
| AXMT123508PEER-RG S | ✓ | ✓ | ✓ | 12.18 | 6.93 | 3.58 | 0.8 | 3.4 | - | IA043 ~ IA046 | |||
| AXMT170508PEER-RG S | ✓ | ✓ | 17.50 | 10.2 | 5.56 | 0.8 | 4.6 | - | IA043 ~ | ||||
| AXMT170516PEER-RG S | ✓ | ✓ | 17.50 | 10.2 | 5.56 | 1.6 | 4.6 | - | IA046 | ||||
| BNMX0603-SG Double Sided T | ✓ | ✓ | ✓ | 9.0 | 6.38 | 3.75 | - | 3.2 | - | ||||
| BNMX0603-MG Double Sided T | ✓ | ✓ | ✓ | 9.0 | 6.38 | 3.75 | - | 3.2 | - | IA083 | |||
| BNMX0603-RG Double Sided T | ✓ | ✓ | ✓ | 9.0 | 6.38 | 3.75 | - | 3.2 | - | ~ IA086 | |||
| BNMX0904-MG Double Sided T | ✓ | ✓ | ✓ | 11.9 | 9.18 | 4.8 | - | 4.2 | - |
