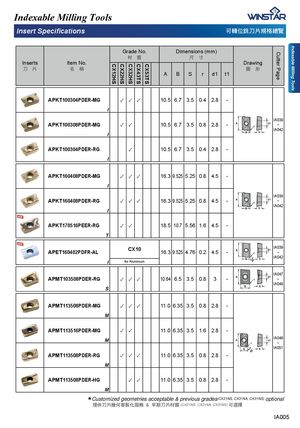

| Inserts ���� | Item No. ���� | G CX CX | ra ��� C | de �� | No ��� CX | . CX | Dim | ensio ��� | ns (m ��� | m) | Drawing ���� | Cutter P | |||
| �� | �� | 12HS 22HS | 32HS | 43TS | 53TS | A | B | S | r | d1 | t1 | �� | age | ||
| APKT100304PDER-MG | I | ✓ | ✓ | ✓ | 10.5 | 6.7 | 3.5 | 0.4 | 2.8 | - | |||||
| APKT100308PDER-MG | I | ✓ | ✓ | 10.5 | 6.7 | 3.5 | 0.8 | 2.8 | - | IA039 ~ IA042 | |||||
| APKT100304PDER-RG | I | ✓ | 10.5 | 6.7 | 3.5 | 0.4 | 2.8 | - | |||||||
| APKT160408PDER-MG | I | ✓ | ✓ | ✓ | 16.3 | 9.525 | 5.25 | 0.8 | 4.5 | - | |||||
| APKT160408PDER-RG | I | ✓ | ✓ | ✓ | 16.3 | 9.525 | 5.25 | 0.8 | 4.5 | - | IA039 ~ IA042 | ||||
| APKT170516PEER-RG | T | ✓ | ✓ | 18.5 | 10.7 | 5.56 | 1.6 | 4.5 | - | ||||||
| APET160402PDFR-AL | I | f | C or A | X lum | 10 inum | 16.3 | 9.525 | 4.76 | 0.2 | 4.5 | - | IA039 ~ IA042 | |||
| APMT103508PDER-RG | S | ✓ | ✓ | ✓ | 10.64 | 6.5 | 3.5 | 0.8 | 3 | - | IA047 ~ IA048 | ||||
| APMT113508PDER-MG | M | ✓ | ✓ | ✓ | 11.0 | 6.35 | 3.5 | 0.8 | 2.8 | - | |||||
| APMT113516PDER-MG | M | ✓ | ✓ | 11.0 | 6.35 | 3.5 | 1.6 | 2.8 | - | IA049 ~ | |||||
| APMT113508PDER-RG | M | ✓ | ✓ | ✓ | 11.0 | 6.35 | 3.5 | 0.8 | 2.8 | - | IA051 | ||||
| APMT113508PDER-HG | M | ✓ | ✓ | 11.0 | 6.35 | 3.5 | 0.8 | 2.8 | - |
