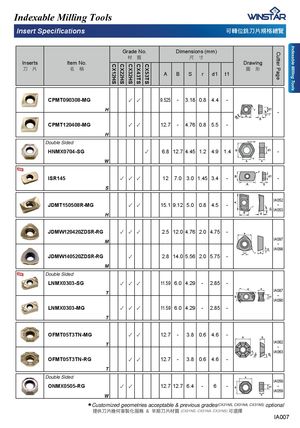

| Inserts ���� | Item No. ���� | CX | G CX | ra ��� CX | de �� | No ��� CX | . CX | Dim | ensio ��� | ns (m ��� | m) | Draw ��� | ing ��� | Cutter P | ||
| �� | �� | 12HS | 22HS | 32HS | 43TS | 53TS | A | B | S | r | d1 | t1 | �� | �� | age | |
| CPMT090308-MG H | ✓ | ✓ | 9.525 | - | 3.18 | 0.8 | 4.4 | - | - | |||||||
| CPMT120408-MG H | ✓ | ✓ | 12.7 | - | 4.76 | 0.8 | 5.5 | - | 11° | |||||||
| HNMX0704-SG W Double Sided | ✓ | 6.8 | 12.7 | 4.45 | 1.2 | 4.9 | 1.4 | - | ||||||||
| ISR145 S | ✓ | ✓ | ✓ | 12 | 7.0 | 3.0 | 1.45 | 3.4 | - | - | ||||||
| JDMT150508R-MG H | ✓ | ✓ | 15.1 | 9.12 | 5.0 | 0.8 | 4.5 | - | IA052 ~ IA053 | |||||||
| JDMW120420ZDSR-RG M | ✓ | ✓ | ✓ | 2.5 | 12.0 | 4.76 | 2.0 | 4.75 | - | IA097 ~ | ||||||
| JDMW140520ZDSR-RG M | ✓ | 2.8 | 14.0 | 5.56 | 2.0 | 5.75 | - | IA098 | ||||||||
| LNMX0303-SG T Double Sided | ✓ | ✓ | ✓ | 11.59 | 6.0 | 4.29 | - | 2.85 | - | IA087 ~ | ||||||
| LNMX0303-MG T | ✓ | ✓ | ✓ | 11.59 | 6.0 | 4.29 | - | 2.85 | - | IA090 | ||||||
| OFMT05T3TN-MG T | ✓ | ✓ | 12.7 | - | 3.8 | 0.6 | 4.6 | - | IA062 ~ | |||||||
| OFMT05T3TN-RG T | ✓ | ✓ | 12.7 | - | 3.8 | 0.6 | 4.6 | - | IA063 | |||||||
| ONMX0505-RG W Double Sided | ✓ | ✓ | 12.7 | 12.7 | 6.4 | - | 6 | - | IA059 ~ IA059 |
