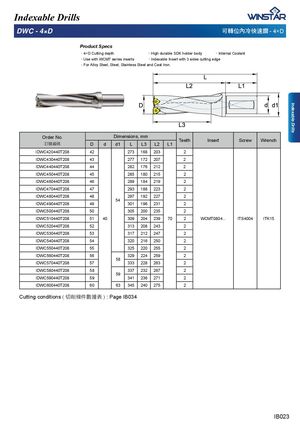

Каталог Winstar инструмент со сменными пластинами 2020 - страница 149
Навигация
Каталог Carbidex сменные пластины 2020
Каталог Winstar твердосплавные пластины и вставки
Каталог Winstar фрезерование
Каталог Winstar монолитный инструмент 2020
Общий каталог Winstar 2015 - 2016
Каталог Winstar сверление
3URGXFW6SHFV
虉4×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant
虉Use with WCMT series inserts 虉Indexable Insert with 3 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. L
| Order No. | Dime | nsions | , mm | Teeth | Insert | Screw | Wrench | ||||
| ���� | D | d | d1 | L | L3 | L2 | L1 | ||||
| IDWC420440T208 | 42 | 273 | 168 | 203 | 2 | ||||||
| IDWC430440T208 | 43 | 277 | 172 | 207 | 2 | ||||||
| IDWC440440T208 | 44 | 282 | 176 | 212 | 2 | ||||||
| IDWC450440T208 | 45 | 285 | 180 | 215 | 2 | ||||||
| IDWC460440T208 | 46 | 289 | 184 | 219 | 2 | ||||||
| IDWC470440T208 | 47 | 293 | 188 | 223 | 2 | ||||||
| IDWC480440T208 | 48 | 297 | 192 | 227 | 2 | ||||||
| IDWC490440T208 | 49 | 54 | 301 | 196 | 231 | 2 | |||||
| IDWC500440T208 | 50 | 305 | 200 | 235 | 2 | ||||||
| IDWC510440T208 | 51 | 40 | 309 | 204 | 239 | 70 | 2 | WCMT0804... | ITS4004 | ITK15 | |
| IDWC520440T208 | 52 | 313 | 208 | 243 | 2 | ||||||
| IDWC530440T208 | 53 | 317 | 212 | 247 | 2 | ||||||
| IDWC540440T208 | 54 | 320 | 216 | 250 | 2 | ||||||
| IDWC550440T208 | 55 | 325 | 220 | 255 | 2 | ||||||
| IDWC560440T208 | 56 | 329 | 224 | 259 | 2 | ||||||
| IDWC570440T208 | 57 | 58 | 333 | 228 | 263 | 2 | |||||
| IDWC580440T208 | 58 | 337 | 232 | 267 | 2 | ||||||
| IDWC590440T208 | 59 | 59 | 341 | 236 | 271 | 2 | |||||
| IDWC600440T208 | 60 | 63 | 345 | 240 | 275 | 2 |
