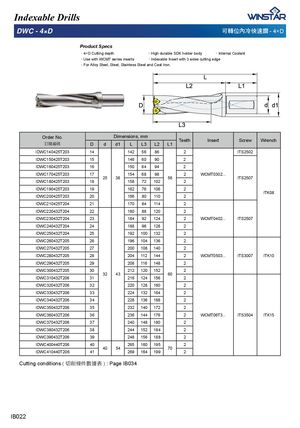

Каталог Winstar инструмент со сменными пластинами 2020 - страница 148
Навигация
Каталог Carbidex сменные пластины 2020
Каталог Winstar твердосплавные пластины и вставки
Каталог Winstar фрезерование
Каталог Winstar монолитный инструмент 2020
Общий каталог Winstar 2015 - 2016
Каталог Winstar сверление
3URGXFW6SHFV
虉4×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant
虉Use with WCMT series inserts 虉Indexable Insert with 3 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. L
Order No. Dimensions, mm
Teeth Insert Screw Wrench
| 宑庋佷䩋 D | d1 d L | L3 | L2 | L1 | |
| IDWC140425T203 | 14 | 142 | 56 | 86 | ITS2502 2 |
| IDWC150425T203 | 15 | 146 | 60 | 90 | 2 |
| IDWC160425T203 | 16 | 150 | 64 | 94 | 2 |
| IDWC170425T203 | 17 | 154 | 68 | 98 | WCMT0302... 2 |
| 38 25 | ITS2507 56 | ||||
| IDWC180425T203 | 18 | 158 | 72 | 102 | 2 |
| IDWC190425T203 | 19 | 162 | 76 | 106 | 2 |
| ITK08 | |||||
| IDWC200425T203 | 20 | 166 | 80 | 110 | 2 |
| IDWC210425T204 | 21 | 170 | 84 | 114 | 2 |
| IDWC220432T204 | 22 | 180 | 88 | 120 | 2 |
| IDWC230432T204 | 23 | 184 | 92 | 124 | ITS2507 WCMT0402... 2 |
| IDWC240432T204 | 24 | 188 | 96 | 128 | 2 |
| IDWC250432T204 | 25 | 192 | 100 | 132 | 2 |
| IDWC260432T205 | 26 | 196 | 104 | 136 | 2 |
| IDWC270432T205 | 27 | 200 | 108 | 140 | 2 |
| IDWC280432T205 | 28 | 204 | 112 | 144 | ITK10 ITS3007 WCMT0503... 2 |
| IDWC290432T205 | 29 | 208 | 116 | 148 | 2 |
| IDWC300432T205 | 30 | 212 | 120 | 152 | 2 |
| 43 32 | 60 | ||||
| IDWC310432T206 | 31 | 216 | 124 | 156 | 2 |
| IDWC320432T206 | 32 | 220 | 128 | 160 | 2 |
| IDWC330432T206 | 33 | 224 | 132 | 164 | 2 |
| IDWC340432T206 | 34 | 228 | 136 | 168 | 2 |
| IDWC350432T206 | 35 | 232 | 140 | 172 | 2 |
| IDWC360432T206 | 36 | 236 | 144 | 176 | ITK15 ITS3504 WCMT06T3... 2 |
| IDWC370432T206 | 37 | 240 | 148 | 180 | 2 |
| IDWC380432T206 | 38 | 244 | 152 | 184 | 2 |
| IDWC390432T206 | 39 | 248 | 156 | 188 | 2 |
| IDWC400440T206 | 40 | 265 | 160 | 195 | 2 |
| 54 40 | 70 | ||||
| IDWC410440T206 | 41 | 269 | 164 | 199 | 2 |
Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB034
