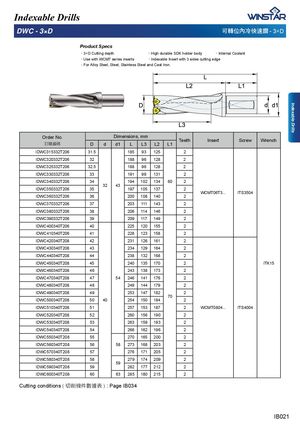

Indexable Drills Indexable Drills DWC - 3×D ╾惘⃜⋶⍆ㅺ憮昌 - 3×D 3URGXFW6SHFV 虉3×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant 虉Use with WCMT series inserts 虉Indexable Insert with 3 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. L Order No. Dimensions, mm Teeth Insert Screw Wrench 宑庋佷䩋 D d d1 L L3 L2 L1 IDWC315332T206 31.5 185 93 125 2 IDWC320332T206 32 188 96 128 2 IDWC325332T206 32.5 188 96 128 2 IDWC330332T206 33 191 99 131 2 IDWC340332T206 34 194 102 134 60 2 32 43 IDWC350332T206 35 197 105 137 2 WCMT06T3... ITS3504 IDWC360332T206 36 200 108 140 2 IDWC370332T206 37 203 111 143 2 IDWC380332T206 38 206 114 146 2 IDWC390332T206 39 209 117 149 2 IDWC400340T206 40 225 120 155 2 IDWC410340T206 41 228 123 158 2 IDWC420340T208 42 231 126 161 2 IDWC430340T208 43 234 129 164 2 IDWC440340T208 44 238 132 168 2 IDWC450340T208 45 240 135 170 2 ITK15 IDWC460340T208 46 243 138 173 2 IDWC470340T208 47 54 246 141 176 2 IDWC480340T208 48 249 144 179 2 IDWC490340T208 49 253 147 182 2 70 IDWC500340T208 50 40 254 150 184 2 IDWC510340T208 51 257 153 187 2 WCMT0804... ITS4004 IDWC520340T208 52 260 156 190 2 IDWC530340T208 53 263 159 193 2 IDWC540340T208 54 266 162 196 2 IDWC550340T208 55 270 165 200 2 IDWC560340T208 56 58 273 168 203 2 IDWC570340T208 57 276 171 205 2 IDWC580340T208 58 279 174 209 2 59 IDWC590340T208 59 282 177 212 2 IDWC600340T208 60 63 285 180 215 2 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page IB034 IB021
