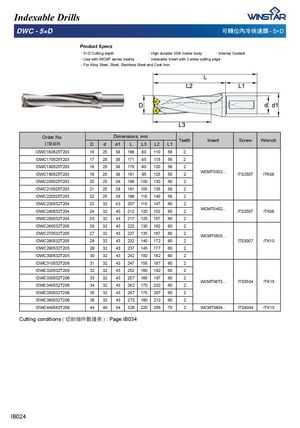

Каталог Winstar инструмент со сменными пластинами 2020 - страница 150
Навигация
Каталог Carbidex сменные пластины 2020
Каталог Winstar твердосплавные пластины и вставки
Каталог Winstar фрезерование
Каталог Winstar монолитный инструмент 2020
Общий каталог Winstar 2015 - 2016
Каталог Winstar сверление
3URGXFW6SHFV
虉5×D Cutting depth 虉High durable SDK holder body 虉Internal Coolant
虉Use with WCMT series inserts 虉Indexable Insert with 3 sides cutting edge 虉For Alloy Steel, Steel, Stainless Steel and Cast Iron. L
| Order No. | Dime | nsions | , mm | Teeth | Insert | Screw | Wrench | ||||
| ���� | D | d | d1 | L | L3 | L2 | L1 | ||||
| IDWC160525T203 | 16 | 25 | 38 | 166 | 80 | 110 | 56 | 2 | |||
| IDWC170525T203 | 17 | 25 | 38 | 171 | 85 | 115 | 56 | 2 | |||
| IDWC180525T203 | 18 | 25 | 38 | 176 | 90 | 120 | 56 | 2 | |||
| IDWC190525T203 | 19 | 25 | 38 | 181 | 95 | 125 | 56 | 2 | WCMT0302... | ITS2507 | ITK08 |
| IDWC200525T203 | 20 | 25 | 38 | 186 | 100 | 130 | 56 | 2 | |||
| IDWC210525T203 | 21 | 25 | 38 | 191 | 105 | 135 | 56 | 2 | |||
| IDWC220525T203 | 22 | 25 | 38 | 196 | 110 | 140 | 56 | 2 | |||
| IDWC230532T204 | 23 | 32 | 43 | 207 | 115 | 147 | 60 | 2 | |||
| IDWC240532T204 | 24 | 32 | 43 | 212 | 120 | 152 | 60 | 2 | WCMT0402... | ITS2507 | ITK08 |
| IDWC250532T204 | 25 | 32 | 43 | 217 | 125 | 157 | 60 | 2 | |||
| IDWC260532T205 | 26 | 32 | 43 | 222 | 130 | 162 | 60 | 2 | |||
| IDWC270532T205 | 27 | 32 | 43 | 227 | 135 | 167 | 60 | 2 | WCMT0503 | ||
| IDWC280532T205 | 28 | 32 | 43 | 232 | 140 | 172 | 60 | 2 | ... | ITS3007 | ITK10 |
| IDWC290532T205 | 29 | 32 | 43 | 237 | 145 | 177 | 60 | 2 | |||
| IDWC300532T205 | 30 | 32 | 43 | 242 | 150 | 182 | 60 | 2 | |||
| IDWC310532T206 | 31 | 32 | 43 | 247 | 155 | 187 | 60 | 2 | |||
| IDWC320532T206 | 32 | 32 | 43 | 252 | 160 | 192 | 60 | 2 | |||
| IDWC330532T206 | 33 | 32 | 43 | 257 | 165 | 197 | 60 | 2 | |||
| IDWC340532T206 | 34 | 32 | 43 | 262 | 170 | 202 | 60 | 2 | WCMT06T3... | ITS3504 | ITK15 |
| IDWC350532T206 | 35 | 32 | 43 | 267 | 175 | 207 | 60 | 2 | |||
| IDWC360532T206 | 36 | 32 | 43 | 272 | 180 | 212 | 60 | 2 | |||
| IDWC440540T208 | 44 | 40 | 54 | 326 | 220 | 256 | 70 | 2 | WCMT0804... | ITS4004 | ITK15 |
