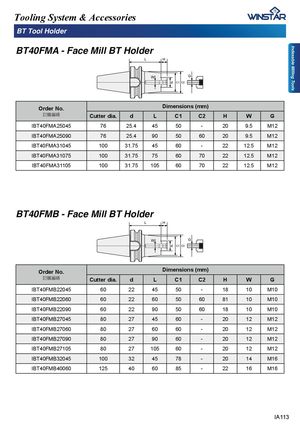

BT Tool Holder
BT40FMA - Face Mill BT Holder
| L | H W | d C1 C2 G | ||||||
| Order No. | Di | mension | s (mm) | |||||
| ���� | Cutter dia. | d | L | C1 | C2 | H | W | G |
| IBT40FMA25045 | 76 | 25.4 | 45 | 50 | - | 20 | 9.5 | M12 |
| IBT40FMA25090 | 76 | 25.4 | 90 | 50 | 60 | 20 | 9.5 | M12 |
| IBT40FMA31045 | 100 | 31.75 | 45 | 60 | - | 22 | 12.5 | M12 |
| IBT40FMA31075 | 100 | 31.75 | 75 | 60 | 70 | 22 | 12.5 | M12 |
| IBT40FMA31105 | 100 | 31.75 | 105 | 60 | 70 | 22 | 12.5 | M12 |
BT40FMB - Face Mill BT Holder
| Order No. | L | D H W | imension d C1 C2 G | s (mm) | ||||
| ���� | Cutter dia. | d | L | C1 | C2 | H | W | G |
| IBT40FMB22045 | 60 | 22 | 45 | 50 | - | 18 | 10 | M10 |
| IBT40FMB22060 | 60 | 22 | 60 | 50 | 60 | 81 | 10 | M10 |
| IBT40FMB22090 | 60 | 22 | 90 | 50 | 60 | 18 | 10 | M10 |
| IBT40FMB27045 | 80 | 27 | 45 | 60 | - | 20 | 12 | M12 |
| IBT40FMB27060 | 80 | 27 | 60 | 60 | - | 20 | 12 | M12 |
| IBT40FMB27090 | 80 | 27 | 90 | 60 | - | 20 | 12 | M12 |
| IBT40FMB27105 | 80 | 27 | 105 | 60 | - | 20 | 12 | M12 |
| IBT40FMB32045 | 100 | 32 | 45 | 78 | - | 20 | 14 | M16 |
| IBT40FMB40060 | 125 | 40 | 60 | 85 | - | 22 | 16 | M16 |
