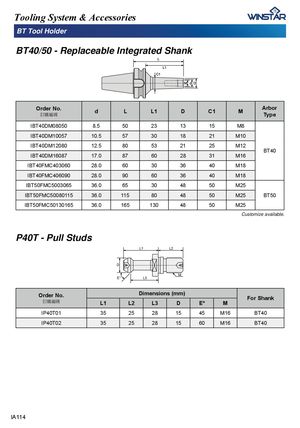

BT Tool Holder
BT40/50 - Replaceable Integrated Shank
| Order No. ���� | d | L | L1 | D | C1 | M | Arbor Type |
| IBT40DM08050 | 8.5 | 50 | 23 | 13 | 15 | M8 | |
| IBT40DM10057 | 10.5 | 57 | 30 | 18 | 21 | M10 | |
| IBT40DM12080 | 12.5 | 80 | 53 | 21 | 25 | M12 | |
| IBT40DM16087 | 17.0 | 87 | 60 | 28 | 31 | M16 | BT40 |
| IBT40FMC403060 | 28.0 | 60 | 30 | 36 | 40 | M18 | |
| IBT40FMC406090 | 28.0 | 90 | 60 | 36 | 40 | M18 | |
| IBT50FMC5003065 | 36.0 | 65 | 30 | 48 | 50 | M25 | |
| IBT50FMC50080115 | 36.0 | 115 | 80 | 48 | 50 | M25 | BT50 |
| IBT50FMC50130165 | 36.0 | 165 | 130 | 48 | 50 | M25 |
Customize available.
P40T - Pull Studs
L1 L2
D M E° L3
| Order No. | D | imension | s (mm) | F Shk | |||
| ���� | L1 | L2 | L3 | D | E° | M | or an |
| IP40T01 | 35 | 25 | 28 | 15 | 45 | M16 | BT40 |
| IP40T02 | 35 | 25 | 28 | 15 | 60 | M16 | BT40 |
