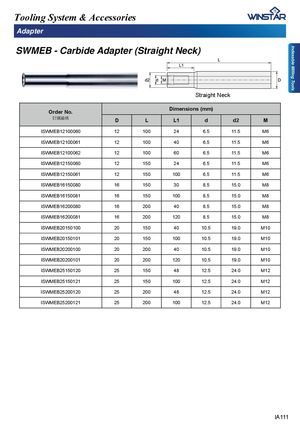

SWMEB - Carbide Adapter (Straight Neck)
Straight Neck
| Order No. ���� | Dimensio | ns (mm) | ||||
| D | L | L1 | d | d2 | M | |
| ISWMEB12100060 | 12 | 100 | 24 | 6.5 | 11.5 | M6 |
| ISWMEB12100061 | 12 | 100 | 40 | 6.5 | 11.5 | M6 |
| ISWMEB12100062 | 12 | 100 | 60 | 6.5 | 11.5 | M6 |
| ISWMEB12150060 | 12 | 150 | 24 | 6.5 | 11.5 | M6 |
| ISWMEB12150061 | 12 | 150 | 100 | 6.5 | 11.5 | M6 |
| ISWMEB16150080 | 16 | 150 | 30 | 8.5 | 15.0 | M8 |
| ISWMEB16150081 | 16 | 150 | 100 | 8.5 | 15.0 | M8 |
| ISWMEB16200080 | 16 | 200 | 40 | 8.5 | 15.0 | M8 |
| ISWMEB16200081 | 16 | 200 | 120 | 8.5 | 15.0 | M8 |
| ISWMEB20150100 | 20 | 150 | 40 | 10.5 | 19.0 | M10 |
| ISWMEB20150101 | 20 | 150 | 100 | 10.5 | 19.0 | M10 |
| ISWMEB20200100 | 20 | 200 | 40 | 10.5 | 19.0 | M10 |
| ISWMEB20200101 | 20 | 200 | 120 | 10.5 | 19.0 | M10 |
| ISWMEB25150120 | 25 | 150 | 48 | 12.5 | 24.0 | M12 |
| ISWMEB25150121 | 25 | 150 | 100 | 12.5 | 24.0 | M12 |
| ISWMEB25200120 | 25 | 200 | 48 | 12.5 | 24.0 | M12 |
| ISWMEB25200121 | 25 | 200 | 100 | 12.5 | 24.0 | M12 |
