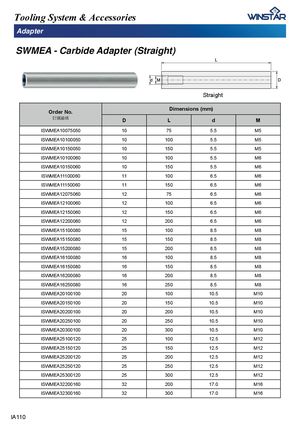

SWMEA - Carbide Adapter (Straight)
Straight
| Order No. | Dimensio | ns (mm) | ||
| ���� | D | L | d | M |
| ISWMEA10075050 | 10 | 75 | 5.5 | M5 |
| ISWMEA10100050 | 10 | 100 | 5.5 | M5 |
| ISWMEA10150050 | 10 | 150 | 5.5 | M5 |
| ISWMEA10100060 | 10 | 100 | 5.5 | M6 |
| ISWMEA10150060 | 10 | 150 | 5.5 | M6 |
| ISWMEA11100060 | 11 | 100 | 6.5 | M6 |
| ISWMEA11150060 | 11 | 150 | 6.5 | M6 |
| ISWMEA12075060 | 12 | 75 | 6.5 | M6 |
| ISWMEA12100060 | 12 | 100 | 6.5 | M6 |
| ISWMEA12150060 | 12 | 150 | 6.5 | M6 |
| ISWMEA12200060 | 12 | 200 | 6.5 | M6 |
| ISWMEA15100080 | 15 | 100 | 8.5 | M8 |
| ISWMEA15150080 | 15 | 150 | 8.5 | M8 |
| ISWMEA15200080 | 15 | 200 | 8.5 | M8 |
| ISWMEA16100080 | 16 | 100 | 8.5 | M8 |
| ISWMEA16150080 | 16 | 150 | 8.5 | M8 |
| ISWMEA16200080 | 16 | 200 | 8.5 | M8 |
| ISWMEA16250080 | 16 | 250 | 8.5 | M8 |
| ISWMEA20100100 | 20 | 100 | 10.5 | M10 |
| ISWMEA20150100 | 20 | 150 | 10.5 | M10 |
| ISWMEA20200100 | 20 | 200 | 10.5 | M10 |
| ISWMEA20250100 | 20 | 250 | 10.5 | M10 |
| ISWMEA20300100 | 20 | 300 | 10.5 | M10 |
| ISWMEA25100120 | 25 | 100 | 12.5 | M12 |
| ISWMEA25150120 | 25 | 150 | 12.5 | M12 |
| ISWMEA25200120 | 25 | 200 | 12.5 | M12 |
| ISWMEA25250120 | 25 | 250 | 12.5 | M12 |
| ISWMEA25300120 | 25 | 300 | 12.5 | M12 |
| ISWMEA32200160 | 32 | 200 | 17.0 | M16 |
| ISWMEA32300160 | 32 | 300 | 17.0 | M16 |
