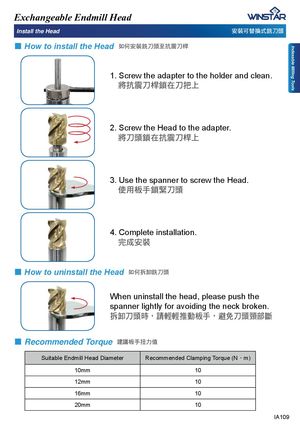

Indexable Milling Tools Exchangeable Endmill Head Install the Head ⴘ婬╾㢎㕪ゞ搠⎏榼 Ψ +RZWRLQVWDOOWKH+HDG⬑⃤ⴘ婬搠⎏榼厂㐦梖⎏㨎 1. Screw the adapter to the holder and clean. !!ⶖ㐦梖⎏㨎攥⢷⎏㐙ᾙ 2. Screw the Head to the adapter. !!ⶖ⎏榼攥⢷㐦梖⎏㨎ᾙ 3. Use the spanner to screw the Head. !!ℎ䚷㤎㏚攥余⎏榼 4. Complete installation. !!ⴛ㎟ⴘ婬 Ψ +RZWRXQLQVWDOOWKH+HDG⬑⃤㑕┇搠⎏榼 When uninstall the head, please push the spanner lightly for avoiding the neck broken. 㑕┇⎏榼㟑虇屚悤悤㔷⑤㤎㏚虇戎⋜⎏榼槇扷㝆 Ψ Recommended Torque ら峿㤎㏚㏼␪⇋ Suitable Endmill Head Diameter Recommended Clamping Torque (N虉m) 10mm 10 12mm 10 16mm 10 20mm 10 IA109
