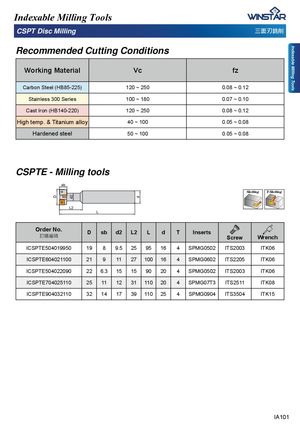

Indexable Milling Tools D d2 d Indexable Milling Tools CSPT Disc Milling ᾘ棱⎒搠⏙ Recommended Cutting Conditions Working Material Vc fz Carbon Steel (HB85-225) 120 ~ 250 0.08 ~ 0.12 Stainless 300 Series 100 ~ 180 0.07 ~ 0.10 Cast Iron (HB140-220) 120 ~ 250 0.08 ~ 0.12 High temp. & Titanium alloy 40 ~ 100 0.05 ~ 0.08 Hardened steel 50 ~ 100 0.05 ~ 0.08 CSPTE - Milling tools sb Slotting T-Slotting L2 L Order No.宑庋佷䩋 D sb d2 L2 L d T Inserts Screw Wrench ICSPTE504019950 19 8 9.5 25 95 16 4 SPMG0502 ITS2003 ITK06 ICSPTE604021100 21 9 11 27 100 16 4 SPMG0602 ITS2205 ITK06 ICSPTE504022090 22 6.3 15 15 90 20 4 SPMG0502 ITS2003 ITK06 ICSPTE704025110 25 11 12 31 110 20 4 SPMG07T3 ITS2511 ITK08 ICSPTE904032110 32 14 17 39 110 25 4 SPMG0904 ITS3504 ITK15 IA101
