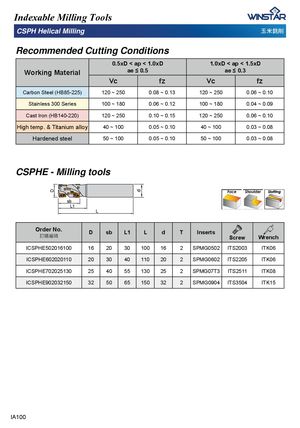

D Indexable Milling Tools CSPH Helical Milling 䔘丂搠⏙ Recommended Cutting Conditions 0.5xD < ap < 1.0xD 1.0xD < ap < 1.5xD Working Material DH” DH” Vc fz Vc fz Carbon Steel (HB85-225) 120 ~ 250 0.08 ~ 0.13 120 ~ 250 0.06 ~ 0.10 Stainless 300 Series 100 ~ 180 0.06 ~ 0.12 100 ~ 180 0.04 ~ 0.09 Cast Iron (HB140-220) 120 ~ 250 0.10 ~ 0.15 120 ~ 250 0.06 ~ 0.10 High temp. & Titanium alloy 40 ~ 100 0.05 ~ 0.10 40 ~ 100 0.03 ~ 0.08 Hardened steel 50 ~ 100 0.05 ~ 0.10 50 ~ 100 0.03 ~ 0.08 CSPHE - Milling tools sb L1 L Order No.宑庋佷䩋 D sb L1 L d T Inserts Screw Wrench ICSPHE502016100 16 20 30 100 16 2 SPMG0502 ITS2003 ITK06 ICSPHE602020110 20 30 40 110 20 2 SPMG0602 ITS2205 ITK06 ICSPHE702025130 25 40 55 130 25 2 SPMG07T3 ITS2511 ITK08 ICSPHE902032150 32 50 65 150 32 2 SPMG0904 ITS3504 ITK15 IA100
